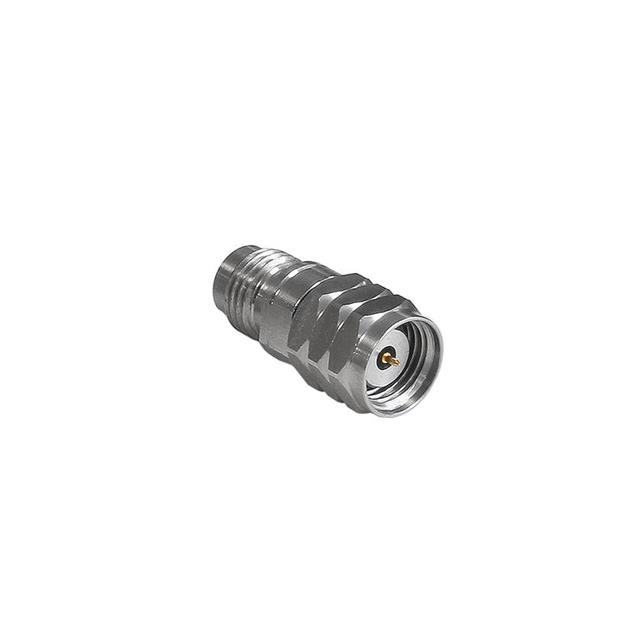

Specification	RFAA185P240J

Adapter Series Size	1.85 mm, 2.4 mm
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End) Plug Size	1.85 mm
Convert From (Adapter End) Type	Male Pin
Convert To (Adapter End)	Female Socket, Jack
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Model	APC-2.4, OS-50
Convert To (Adapter End) Series	OS-50, APC-2.4
Convert To (Adapter End) Size	2.4 mm
Convert To (Adapter End) Type	Jack, Female Socket, 2.4mm (APC-2.4, OS-50) Jack
Dielectric Material	Polytetrafluoroethylene (PTFE), Polyetherimide (PEI)
Fastening Type	Threaded
Frequency - Max	65 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-40 °C
Style	Straight

RFAA185 Series

Part	Center Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Body Material	Mating Cycles	Mounting Type	Impedance	Fastening Type	Conversion Type	Center Gender	Frequency - Max	Convert From (Adapter End) Plug Size	Convert From (Adapter End) Type	Adapter Series Size	Adapter Type	Style	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Convert To (Adapter End) Size	Convert To (Adapter End) Series	Convert To (Adapter End)	Convert To (Adapter End) Model	Convert From (Adapter End) Jack Size	Convert To (Adapter End) Precision
BULGIN LIMITED RFAA185P185J	Beryllium Copper	-40 °C	65 °C	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Free Hanging (In-Line)	50 Ohm	Threaded	Same Series	Female Male	65 GHz	1.85 mm	Male Pin	1.85 mm	Plug to Jack	Straight	1.85mm Jack	Female Socket
BULGIN LIMITED RFAA185J240J	Beryllium Copper	-40 °C	65 °C	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Free Hanging (In-Line)	50 Ohm	Threaded	Between Series	Female	65 GHz		Female Socket	1.85 mm 2.4 mm	Jack to Jack	Straight	2.4mm (APC-2.4 OS-50) Jack Female Socket Jack	Female Socket	2.4 mm	APC-2.4 OS-50	Female Socket Jack	APC-2.4 OS-50	1.85 mm
BULGIN LIMITED RFAA185P292P	Beryllium Copper	-40 °C	65 °C	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Free Hanging (In-Line)	50 Ohm	Threaded	Between Series	Male	65 GHz	1.85 mm	Male Pin	1.85 mm 2.92 mm	Plug to Plug	Straight	Male Pin Plug		2.92 mm		(OS-2.9) Plug Male Pin Plug	OS-2.9		2.92 mm
BULGIN LIMITED RFAA185J350P	Beryllium Copper	-40 °C	65 °C	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Free Hanging (In-Line)	50 Ohm	Threaded	Between Series	Female Male	65 GHz		Female Socket	1.85 mm 3.5 mm	Plug to Jack	Straight	3.5mm Plug	Male Pin	3.5 mm		Male Pin Plug		1.85 mm
BULGIN LIMITED RFAA185J185J	Beryllium Copper	-40 °C	65 °C	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Free Hanging (In-Line)	50 Ohm	Threaded	Same Series	Female	65 GHz		Female Socket	1.85 mm	Jack to Jack	Straight	1.85mm Jack	Female Socket					1.85 mm
BULGIN LIMITED RFAA185P292J	Beryllium Copper	-40 °C	65 °C	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Free Hanging (In-Line)	50 Ohm	Threaded	Between Series	Female Male	65 GHz	1.85 mm	Male Pin	1.85 mm 2.92 mm	Plug to Jack	Straight	Jack	Female Socket	2.92 mm		Female Socket Jack	OS-2.9
BULGIN LIMITED RFAA185J292P	Beryllium Copper	-40 °C	65 °C	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Free Hanging (In-Line)	50 Ohm	Threaded	Between Series	Female Male	65 GHz		Female Socket	1.85 mm 2.92 mm	Plug to Jack	Straight	Male Pin Plug		2.92 mm		(OS-2.9) Plug Male Pin Plug	OS-2.9	1.85 mm	2.92 mm
BULGIN LIMITED RFAA185J350J	Beryllium Copper	-40 °C	65 °C	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Free Hanging (In-Line)	50 Ohm	Threaded	Between Series	Female	65 GHz		Female Socket	1.85 mm 3.5 mm	Jack to Jack	Straight	Jack	Female Socket	3.5 mm				1.85 mm
BULGIN LIMITED RFAA185P350P	Beryllium Copper	-40 °C	65 °C	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Free Hanging (In-Line)	50 Ohm	Threaded	Between Series	Male	65 GHz	1.85 mm	Male Pin	1.85 mm 3.5 mm	Plug to Plug	Straight	3.5mm Plug	Male Pin	3.5 mm		Male Pin Plug
BULGIN LIMITED RFAA185P185P	Beryllium Copper	-40 °C	65 °C	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Free Hanging (In-Line)	50 Ohm	Threaded	Same Series	Male	65 GHz	1.85 mm	Male Pin	1.85 mm	Plug to Plug	Straight					Male Pin Plug			1.85 mm
