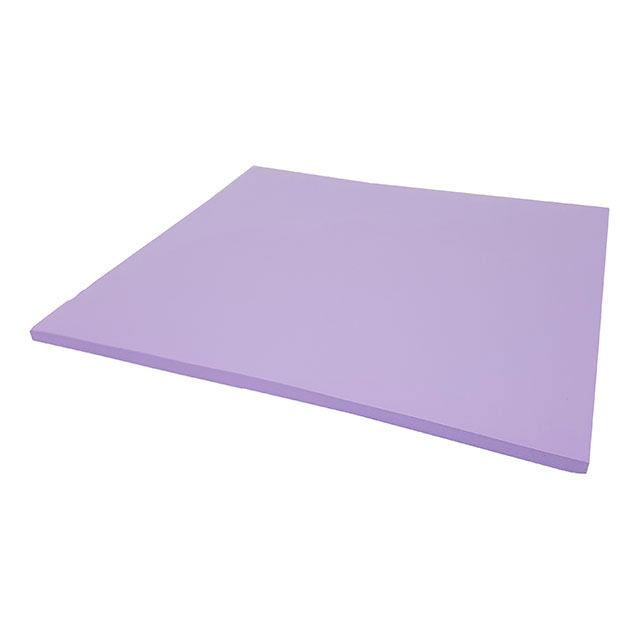

Specification	TG-A4500-54-45-2.0

Adhesive	Tacky - Both Sides
Color	Purple
Material	Silicone
Outline Length	54 mm
Outline Width	45 mm
Shape	Rectangular
Shelf Life	24 Months
Thermal Conductivity	4.5 W/m-K
Thickness	0.079 in
Type	Gap Filler Pad, Sheet
Usage	Multi

TG-A4500 Series

...

Part	Shelf Life	Type	Outline Width	Outline Length	Adhesive	Usage	Backing	Carrier	Color	Shape	Material	Thermal Conductivity	Thickness
t-Global Technology TG-A4500F-320-320-1.0	24 Months	Gap Filler Pad Sheet	320 mm	320 mm	Tacky - One Side	Multi	Fiberglass	Fiberglass	Purple	Square	Silicone	4 W/m-K	0.0394 in
t-Global Technology TG-A4500-10-10-5.0	24 Months	Gap Filler Pad Sheet	10 mm	10 mm	Tacky - Both Sides	Multi			Purple	Square	Silicone	4.5 W/m-K	0.197 in
t-Global Technology TG-A4500-10-10-2.0	24 Months	Gap Filler Pad Sheet	10 mm	10 mm	Tacky - Both Sides	Multi			Purple	Square	Silicone	4.5 W/m-K	0.079 in
t-Global Technology TG-A4500F-320-320-0.5	24 Months	Gap Filler Pad Sheet	320 mm	320 mm	Tacky - One Side	Multi	Fiberglass	Fiberglass	Purple	Square	Silicone	4 W/m-K	0.0197 in
t-Global Technology TG-A4500-30-30-4.0	24 Months	Gap Filler Pad Sheet	30 mm	30 mm	Tacky - Both Sides	Multi			Purple	Square	Silicone	4.5 W/m-K	0.157 in
t-Global Technology TG-A4500-40-40-4.0	24 Months	Gap Filler Pad Sheet	40 mm	40 mm	Tacky - Both Sides	Multi			Purple	Square	Silicone	4.5 W/m-K	0.157 in
t-Global Technology TG-A4500-40-40-3.0	24 Months	Gap Filler Pad Sheet	40 mm	40 mm	Tacky - Both Sides	Multi			Purple	Square	Silicone	4.5 W/m-K	0.118 in
t-Global Technology TG-A4500-25-25-1.0	24 Months	Gap Filler Pad Sheet	25 mm	25 mm	Tacky - Both Sides	Multi			Purple	Square	Silicone	4.5 W/m-K	0.0394 in
t-Global Technology TG-A4500-30-30-3.0	24 Months	Gap Filler Pad Sheet	30 mm	30 mm	Tacky - Both Sides	Multi			Purple	Square	Silicone	4.5 W/m-K	0.118 in
t-Global Technology TG-A4500-25-25-5.0	24 Months	Gap Filler Pad Sheet	25 mm	25 mm	Tacky - Both Sides	Multi			Purple	Square	Silicone	4.5 W/m-K	0.197 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Thermal Pad Tolerance

TG-A4500-54-45-2.0 | Datasheet
