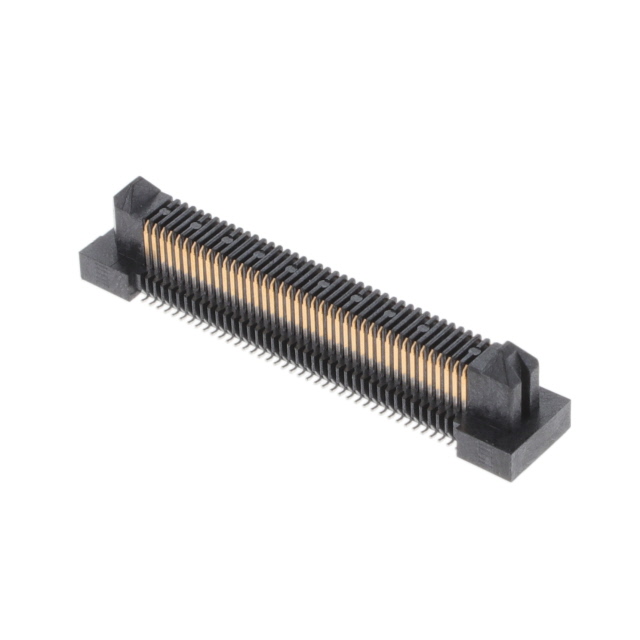

ERM5-040-04.0-L-DV-TR

Active

Samtec Inc.

CONN HDR 80POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERM5-040-04.0-L-DV-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	0.27 in
Height Above Board	6.85 mm
Mated Stacking Heights	9 mm, 11 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Features	Mounting Type	Mated Stacking Heights	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. ERM5-040-04.0-L-DV-K-TR	Header Outer Shroud Contacts	Board Guide Pick and Place	Surface Mount	9 mm 11 mm	2	80	0.27 in	6.85 mm	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám
Samtec Inc. ERM5-040-02.0-L-DV-TR	Header Outer Shroud Contacts	Board Guide	Surface Mount	7 mm 9 mm	2	80	0.191 in	4.85 mm	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám
Samtec Inc. ERM5-040-02.0-S-DV-P-TR	Header Outer Shroud Contacts	Board Guide Pick and Place	Surface Mount	7 mm 9 mm	2	80	0.191 in	4.85 mm	Gold	0.5 mm	0.02 in	30 Áin	0.76 Ám
Samtec Inc. ERM5-040-04.0-L-DV-TR	Header Outer Shroud Contacts	Board Guide	Surface Mount	9 mm 11 mm	2	80	0.27 in	6.85 mm	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám
Samtec Inc. ERM5-040-04.0-S-DV-K-TR	Header Outer Shroud Contacts	Board Guide Pick and Place	Surface Mount	9 mm 11 mm	2	80	0.27 in	6.85 mm	Gold	0.5 mm	0.02 in	30 Áin	0.76 Ám
Samtec Inc. ERM5-040-02.0-S-DV-TR	Header Outer Shroud Contacts	Board Guide	Surface Mount	7 mm 9 mm	2	80	0.191 in	4.85 mm	Gold	0.5 mm	0.02 in	30 Áin	0.76 Ám
Samtec Inc. ERM5-040-04.0-S-DV-TR	Header Outer Shroud Contacts	Board Guide	Surface Mount	9 mm 11 mm	2	80	0.27 in	6.85 mm	Gold	0.5 mm	0.02 in	30 Áin	0.76 Ám
Samtec Inc. ERM5-040-05.0-L-DV-WT-TR	Header Outer Shroud Contacts	Board Guide Solder Retention	Surface Mount	10 mm 12 mm	2	80	0.309 in	7.85 mm	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	300	$ 4.41

General part information

80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
