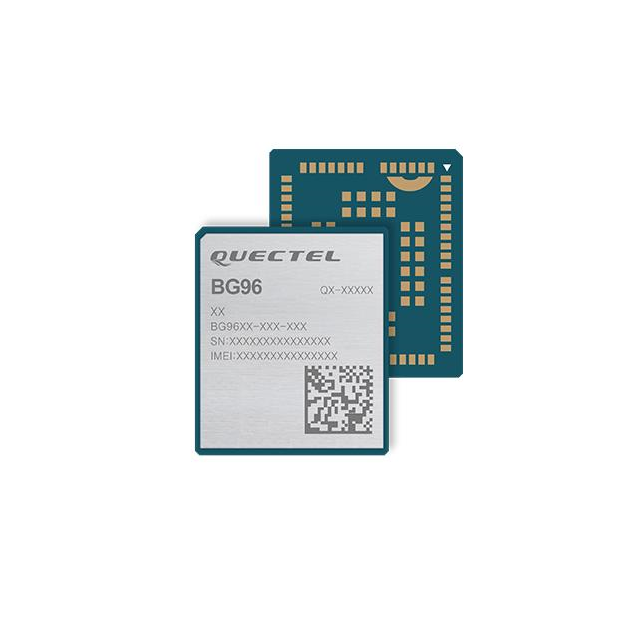

BG96MA-128-SGN
ActiveQuectel
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Search across all available documentation for this part.
BG96MA-128-SGN
ActiveQuectel
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BG96MA-128-SGN |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 16 mA |
| Data Rate | 375 kbps |
| Frequency | 1900 MHz, 1800 MHz, 900 MHz, 850 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 23 dBmW |
| Protocol | EDGE, LTE, GPRS, GSM, HSPA, UMTS |
| RF Family/Standard | Cellular |
| Sensitivity | -117 dBm |
| Serial Interfaces | PCM, USB, ADC, I2C, GPIO, UART |
| Utilized IC / Part | MDM9206-0 |
| Voltage - Supply [Max] | 4.3 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 40.82 | |
| 10 | $ 38.06 | |||
| 25 | $ 35.30 | |||
| 100 | $ 33.09 | |||
| Digi-Reel® | 1 | $ 40.82 | ||
| 10 | $ 38.06 | |||
| 25 | $ 35.30 | |||
| 100 | $ 33.09 | |||
| Tape & Reel (TR) | 250 | $ 30.89 | ||
Description
General part information
BG96 Series
Cellular EDGE, GPRS, GSM, HSPA, LTE, UMTS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
No documents available
