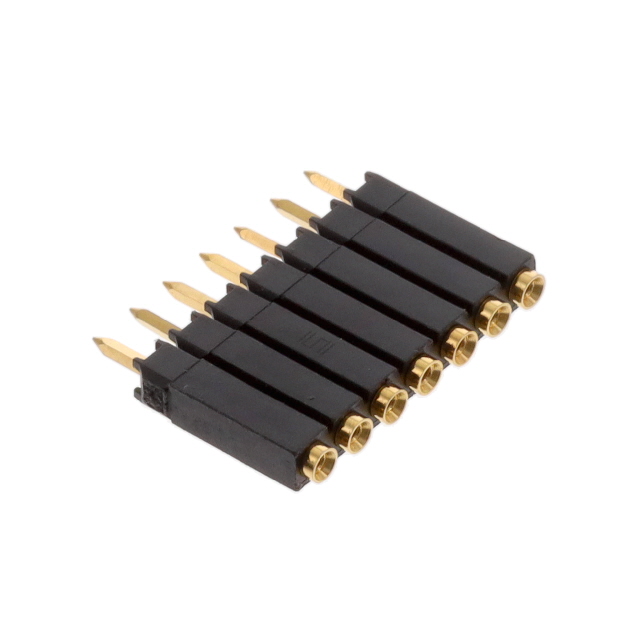

ESS-107-G-04

Active

Samtec Inc.

CONN SOCKET 7POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ESS Datasheet

ESS-107-G-04

Active

Samtec Inc.

CONN SOCKET 7POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet ESS Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESS-107-G-04

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post [x]	3.12 mm
Contact Length - Post [x]	0.123 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.4 in
Insulation Height	10.16 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

ESS-107 Series

Part	Contact Finish - Mating	Contact Shape	Termination	Contact Type	Contact Material	Insulation Color	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Material	Number of Positions	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Samtec Inc. ESS-107-G-24	Gold	Circular	Solder	Female Socket	Beryllium Copper	Black	Push-Pull	10 çin	0.25 çm	All	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	7	Elevated Socket	3.12 mm	0.123 in	Through Hole	0.4 in	10.16 mm	Gold	10 çin	0.25 çm	1	-55 °C	125 °C
Samtec Inc. ESS-107-TT-24		Circular	Solder	Female Socket	Beryllium Copper	Black	Push-Pull			All	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	7	Elevated Socket	3.12 mm	0.123 in	Through Hole	0.4 in	10.16 mm	Tin			1	-55 °C	125 °C
Samtec Inc. ESS-107-G-04	Gold	Circular	Solder	Female Socket	Beryllium Copper	Black	Push-Pull	10 çin	0.25 çm	All	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	7	Elevated Socket	3.12 mm	0.123 in	Through Hole	0.4 in	10.16 mm	Gold	10 çin	0.25 çm	1	-55 °C	125 °C
Samtec Inc. ESS-107-TT-08		Circular	Solder	Female Socket	Beryllium Copper	Black	Push-Pull			All	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	7	Elevated Socket			Through Hole			Tin			1	-55 °C	125 °C	9.27 mm	0.365 in	0.3 in	7.62 mm
Samtec Inc. ESS-107-T-06	Gold	Circular	Solder	Female Socket	Beryllium Copper	Black	Push-Pull			All	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	7	Elevated Socket			Through Hole			Tin	10 çin	0.25 çm	1	-55 °C	125 °C	5.46 mm	0.215 in	0.3 in	7.62 mm
Samtec Inc. ESS-107-T-07	Gold	Circular	Solder	Female Socket	Beryllium Copper	Black	Push-Pull			All	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	7	Elevated Socket			Through Hole	0.4 in	10.16 mm	Tin	10 çin	0.25 çm	1	-55 °C	125 °C	6.73 mm	0.265 in
Samtec Inc. ESS-107-T-28	Gold	Circular	Solder	Female Socket	Beryllium Copper	Black	Push-Pull			All	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	7	Elevated Socket			Through Hole			Tin	10 çin	0.25 çm	1	-55 °C	125 °C	9.47 mm	0.373 in	0.3 in	7.62 mm
Samtec Inc. ESS-107-G-23	Gold	Circular	Solder	Female Socket	Beryllium Copper	Black	Push-Pull	10 çin	0.25 çm	All	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	7	Elevated Socket	3.12 mm	0.123 in	Through Hole			Gold	10 çin	0.25 çm	1	-55 °C	125 °C			0.3 in	7.62 mm
Samtec Inc. ESS-107-T-04	Gold	Circular	Solder	Female Socket	Beryllium Copper	Black	Push-Pull			All	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	7	Elevated Socket	3.12 mm	0.123 in	Through Hole	0.4 in	10.16 mm	Tin	10 çin	0.25 çm	1	-55 °C	125 °C
Samtec Inc. ESS-107-TT-05		Circular	Solder	Female Socket	Beryllium Copper	Black	Push-Pull			All	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	7	Elevated Socket			Through Hole	0.5 in	12.7 mm	Tin			1	-55 °C	125 °C	4.4 mm	0.173 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.01
		10	$ 3.84
		100	$ 3.06

Description

General part information

ESS-107 Series

7 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold
