Description
General part information
PL524-1G13-2B

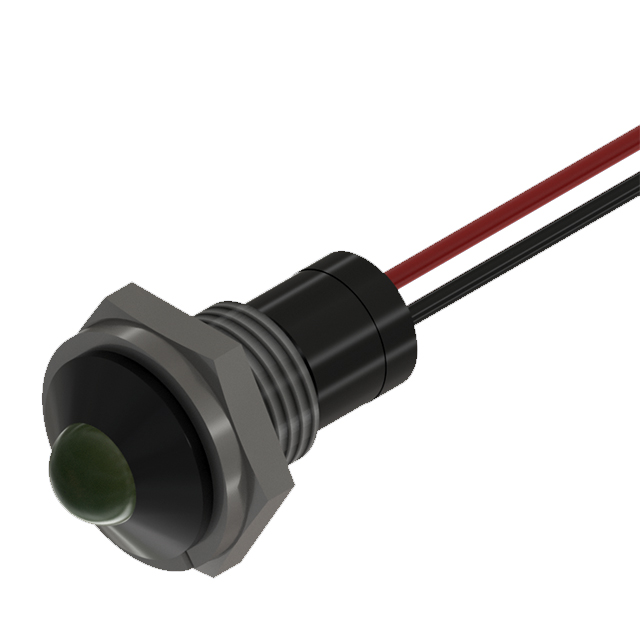

LED Panel Indicator Green Diffused 35° 2.1V Wire Leads - 6" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PL524-1G13-2B |
|---|---|
| Lamp Color | Green |
| Lens Color | Green |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 30 mcd |
| Panel Cutout Dimension | 0.31 " |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Termination Length | 6 in |
| Termination Style | Wire Leads |
| Type | LED |
| Viewing Angle | 35 ° |
| Voltage | 2.1 V |
| Wavelength - Peak | 567 nm |
