BR5010-G

Active

Comchip Technology

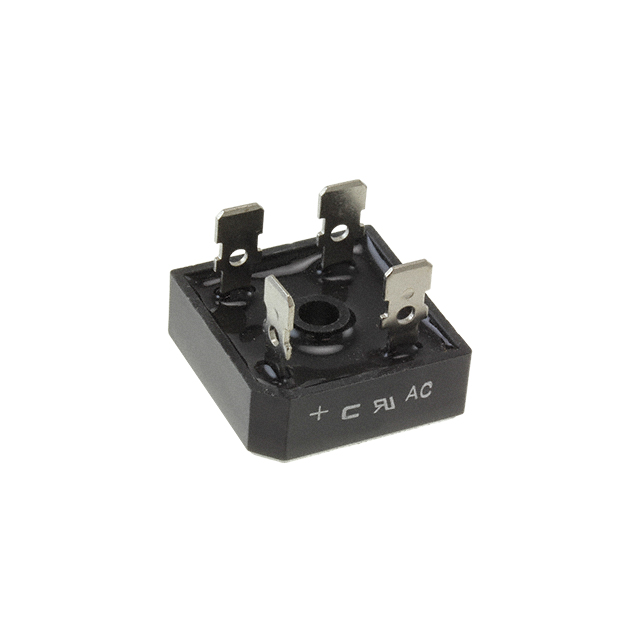

RECTIFIER BRIDGE DIODE SINGLE 1KV 50A 4-PIN CASE BR BOX

Search across all available documentation for this part.

Active

Comchip Technology

RECTIFIER BRIDGE DIODE SINGLE 1KV 50A 4-PIN CASE BR BOX

Technical Specifications

Parameters and characteristics for this part

Specification	BR5010-G

Current - Average Rectified (Io)	50 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	4-Square, BR
Supplier Device Package	BR
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

RECTIFIER BRIDGE DIODE SINGLE 1KV 50A 4-PIN CASE BR BOX

Part	Diode Type	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Package / Case	Mounting Type	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)
Comchip Technology BR5010-G	Single Phase	BR	1.1 V	4-Square, BR	QC Terminal	10 µA	125 ¯C	-55 °C	Standard	1000 V	50 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV QC Terminal BR
