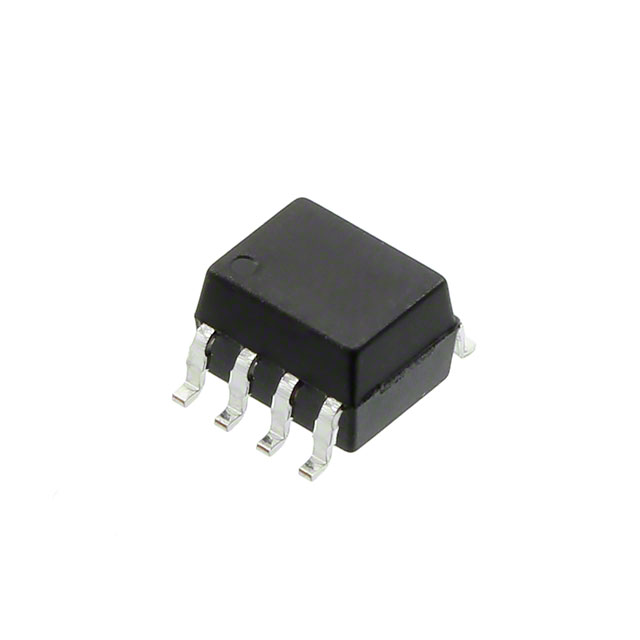

ICPL0453SMT&R

Active

Isocom Components 2004 LTD

OPTOCPLR, TRANS, 1CH, 3.75KV, SOIC-8 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Isocom Components 2004 LTD

OPTOCPLR, TRANS, 1CH, 3.75KV, SOIC-8 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ICPL0453SMT&R

Current - DC Forward (If) (Max) [Max]	25 mA
Current - Output / Channel [custom]	8 mA
Current Transfer Ratio (Max)	50 %
Current Transfer Ratio (Min) [Min]	19 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Turn On / Turn Off Time (Typ)	800 ns
Turn On / Turn Off Time (Typ) [Max]	800 ns
Voltage - Forward (Vf) (Typ)	1.5 V
Voltage - Isolation	3750 Vrms
Voltage - Output (Max) [Max]	20 V

OPTOCPLR, TRANS, 1CH, 3.75KV, SOIC-8 ROHS COMPLIANT: YES

Part	Package / Case	Package / Case [y]	Package / Case [x]	Turn On / Turn Off Time (Typ) [Max]	Turn On / Turn Off Time (Typ)	Mounting Type	Voltage - Isolation	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min) [Min]	Voltage - Forward (Vf) (Typ)	Voltage - Output (Max) [Max]	Number of Channels	Output Type	Current Transfer Ratio (Max)	Current - Output / Channel [custom]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]
Isocom Components 2004 LTD ICPL0453SMT&R	8-SOIC	3.9 mm	0.154 in	800 ns	800 ns	Surface Mount	3750 Vrms	25 mA	19 %	1.5 V	20 V	1	1.81 mOhm	50 %	8 mA	DC	100 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 3750Vrms 1 Channel
