PE33001-6
ActivePasternack

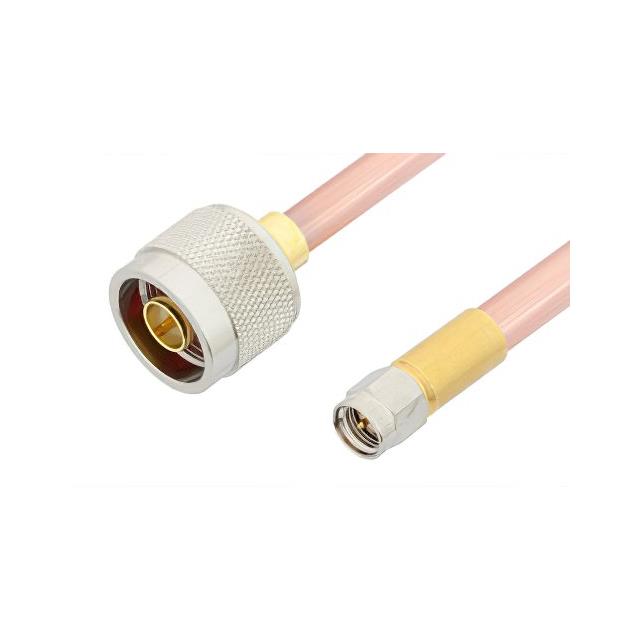

SMA MALE TO N MALE CABLE 6 INCH
PE33001-6
ActivePasternack
SMA MALE TO N MALE CABLE 6 INCH
Description
General part information
PE33001-6
Cable Assembly Coaxial SMA to N-Type RG-401 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE33001-6 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 401 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Length | 0.5 ft |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
