100R28-305B

Active

Parlex USA LLC

CABLE FFC/FPC 28POS 1MM 12"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 28POS 1MM 12"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R28-305B	100R28 Series

Cable Type	FPC, FFC	FPC, FFC
Length	304.8 mm	50.8 - 457.2 mm
Length	-	2 - 18 in
Length	-	203 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Length [x]	12 in	7.992 - 12 in
Number of Conductors	28	28
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 28POS 1MM 4"

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length	Length	Cable Type	Pitch [x]	Pitch [x]	Number of Conductors	Termination Style	Length [x]	Length [x]
Parlex USA LLC 100R28-102B	0.14 in	3.56 mm	4 in	101.6 mm	FFC, FPC	0.039 in	1 mm	28	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R28-254B	0.14 in	3.56 mm		254 mm	FFC, FPC	0.039 in	1 mm	28	Backers on Both Sides, Top on Both Sides	10 in
Parlex USA LLC 100R28-76B	0.14 in	3.56 mm	3 in	76.2 mm	FFC, FPC	0.039 in	1 mm	28	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R28-203B	0.14 in	3.56 mm			FFC, FPC	0.039 in	1 mm	28	Backers on Both Sides, Top on Both Sides	7.992 in	203 mm
Parlex USA LLC 100R28-127B	0.14 in	3.56 mm	5 in	127 mm	FFC, FPC	0.039 in	1 mm	28	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R28-457B	0.14 in	3.56 mm	18 "	457.2 mm	FFC, FPC	0.039 in	1 mm	28	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R28-305B	0.14 in	3.56 mm		304.8 mm	FFC, FPC	0.039 in	1 mm	28	Backers on Both Sides, Top on Both Sides	12 in
Parlex USA LLC 100R28-51B	0.14 in	3.56 mm	2 in	50.8 mm	FFC, FPC	0.039 in	1 mm	28	Backers on Both Sides, Top on Both Sides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

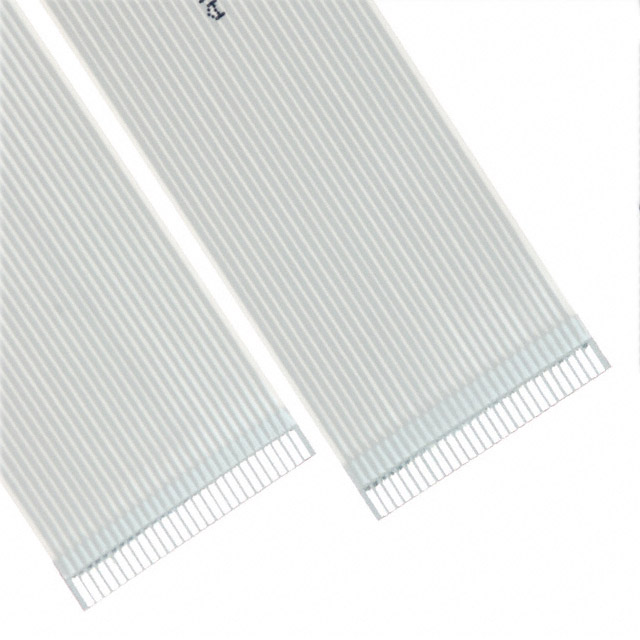

28 Position FFC, FPC Cable 0.039" (1.00mm) 12.0" (304.8mm)
