ATS-01D-199-C2-R0

Active

Advanced Thermal Solutions Inc.

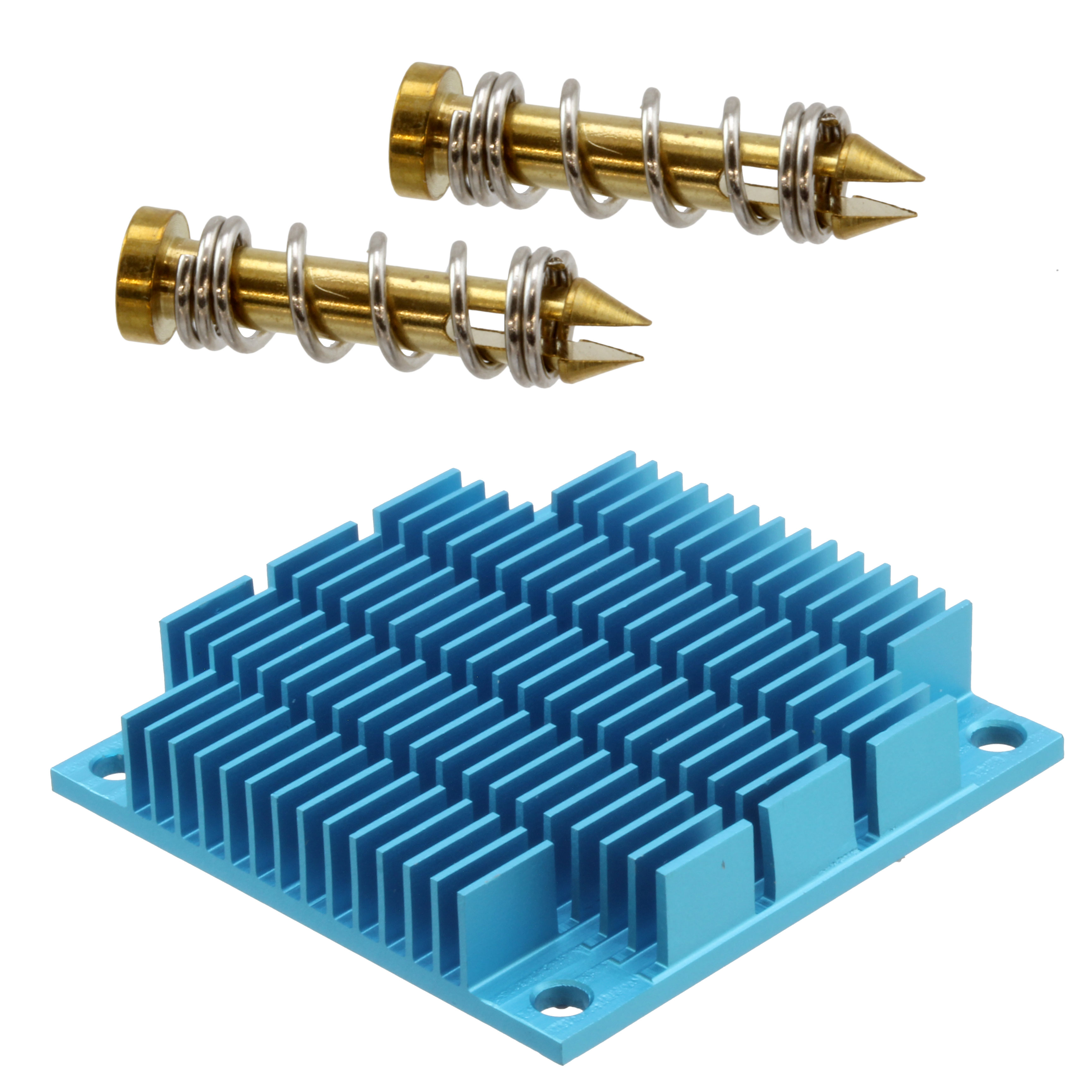

HEATSINK 50X50X6MM XCUT T766

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-01D-199-C2-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 50X50X6MM XCUT T766

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-01D-199-C2-R0	ATS-01D Series

Attachment Method	Push Pin	Push Pin
Fin Height	-	0.23 - 1.378 "
Fin Height	-	5.84 - 35 mm
Fin Height	-	0.394 - 1.181 in
Fin Height	-	10 - 30 mm
Length	-	25 - 70 mm
Length	-	0.984 - 2.756 in
Length [x]	1.969 in	1.181 - 2.362 in
Length [x]	50 mm	30 - 60 mm
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Square, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	15.83 °C/W, 100 LFM	2.17 - 100 °C/W
Type	Top Mount	Top Mount
Width	-	0.984 - 2.362 in
Width	-	40 - 60 mm
Width	-	25 - 57.6 mm
Width	-	1.181 - 2.267 in
Width [y]	50 mm	50 - 70 mm
Width [y]	1.969 in	1.45 - 2.756 in

ATS-01D Series

HEATSINK 40X40X15MM L-TAB T766

...

Part	Package Cooled	Material	Attachment Method	Fin Height	Fin Height	Type	Material Finish	Shape	Thermal Resistance @ Forced Air Flow	Width [x]	Width [x]	Fin Height [z]	Fin Height [z]	Width	Length [x]	Length [x]	Length	Length	Width [y]	Width [y]
Advanced Thermal Solutions Inc. ATS-01D-62-C2-R0	ASIC, BGA, CPU, LGA	Aluminum	Push Pin	0.59 "	15 mm	Top Mount	Blue Anodized	Fins, Square	16.48 °C/W, 100 LFM	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-01D-158-C3-R0	ASIC, BGA, CPU, LGA	Aluminum	Push Pin	1.378 in	35 mm	Top Mount	Blue Anodized	Fins, Square	2.9 °C/W	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-01D-183-C3-R0	ASIC, BGA, CPU, LGA	Aluminum	Push Pin			Top Mount	Blue Anodized	Fins, Square	5.47 °C/W, 100 LFM	1.575 in	40 mm	0.79 in	20 mm
Advanced Thermal Solutions Inc. ATS-01D-93-C3-R0	ASIC, BGA, CPU, LGA	Aluminum	Push Pin			Top Mount	Blue Anodized	Fins, Square	12.42 °C/W	1.575 in	40 mm	0.79 in	20 mm
Advanced Thermal Solutions Inc. ATS-01D-63-C2-R0	ASIC, BGA, CPU, LGA	Aluminum	Push Pin			Top Mount	Blue Anodized	Fins, Square	12.32 °C/W	1.575 in	40 mm	0.79 in	20 mm
Advanced Thermal Solutions Inc. ATS-01D-85-C2-R0	ASIC, BGA, CPU, LGA	Aluminum	Push Pin			Top Mount	Blue Anodized	Fins, Square	23.98 °C/W	1.378 in		0.394 in	10 mm	35 mm	1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-01D-78-C1-R0	ASIC, BGA, CPU, LGA	Aluminum	Push Pin	1.378 in	35 mm	Top Mount	Blue Anodized	Fins, Square	7.64 °C/W	0.984 in				25 mm			25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-01D-199-C2-R0	ASIC, BGA, CPU, LGA	Aluminum	Push Pin			Top Mount	Blue Anodized	Fins, Square	15.83 °C/W, 100 LFM						1.969 in	50 mm			50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-01D-108-C1-R1	ASIC, BGA, CPU, LGA	Aluminum	Push Pin			Top Mount	Blue Anodized	Fins, Square	27 °C/W			0.5 in	12.7 mm		1.969 in	50 mm			50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-01D-101-C3-R0	ASIC, BGA, CPU, LGA	Aluminum	Push Pin			Top Mount	Blue Anodized	Fins, Square	6.77 °C/W, 100 LFM	1.772 in		1.181 in	30 mm	45 mm	1.772 "		45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.68
		10	$ 5.53
		25	$ 5.38

Description

General part information

ATS-01D Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
