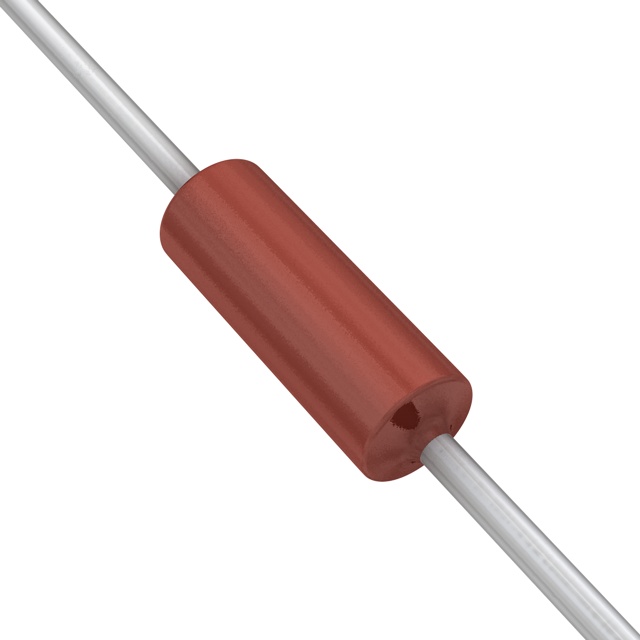

CMF073K3000JNEK

Unknown

Vishay Dale

RES 3.3K OHM 1/2W 5% AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMF073K3000JNEK

Unknown

Vishay Dale

RES 3.3K OHM 1/2W 5% AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMF073K3000JNEK	CMF07 Series

Composition	Metal Film	Metal Film
Features	Safety, Moisture Resistant, Flame Retardant Coating	Safety, Moisture Resistant, Flame Retardant Coating
Number of Terminations	2	2
Operating Temperature [Max]	347 °F	347 °F
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	0.5 W	0.5 W
Power (Watts)	0.5 W	0.5 W
Resistance	3300 Ohms	1 - 750000 kOhms
Size / Dimension [diameter]	0.09 in	0.09 in
Size / Dimension [diameter]	2.29 mm	2.29 mm
Size / Dimension [x]	0.24 in	0.24 in
Size / Dimension [x]	6.1 mm	6.1 mm
Supplier Device Package	Axial	Axial
Temperature Coefficient	200 ppm/°C	100 - 200 ppm/°C
Tolerance	5 %	2 - 5 %

CMF07 Series

RES 1.8K OHM 1/2W 2% AXIAL

...

Part	Power (Watts)	Power (Watts)	Tolerance	Package / Case	Resistance	Features	Composition	Supplier Device Package	Temperature Coefficient	Number of Terminations	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]
Vishay Dale CMF071K8000GKBF	0.5 W	0.5 W	2 %	Axial	1.8 kOhms	Flame Retardant Coating, Moisture Resistant, Safety	Metal Film	Axial	100 ppm/°C	2	-55 °C	347 °F	0.09 in	0.24 in	6.1 mm	2.29 mm
Vishay Dale CMF07100K00GKEB	0.5 W	0.5 W	2 %	Axial	100 kOhms	Flame Retardant Coating, Moisture Resistant, Safety	Metal Film	Axial	100 ppm/°C	2	-55 °C	347 °F	0.09 in	0.24 in	6.1 mm	2.29 mm
Vishay Dale CMF07300R00JKBF	0.5 W	0.5 W	5 %	Axial	300 Ohms	Flame Retardant Coating, Moisture Resistant, Safety	Metal Film	Axial	100 ppm/°C	2	-55 °C	347 °F	0.09 in	0.24 in	6.1 mm	2.29 mm
Vishay Dale CMF074K7000GKR6	0.5 W	0.5 W	2 %	Axial	4.7 kOhms	Flame Retardant Coating, Moisture Resistant, Safety	Metal Film	Axial	100 ppm/°C	2	-55 °C	347 °F	0.09 in	0.24 in	6.1 mm	2.29 mm
Vishay Dale CMF07180K00GKR6	0.5 W	0.5 W	2 %	Axial	180 kOhms	Flame Retardant Coating, Moisture Resistant, Safety	Metal Film	Axial	100 ppm/°C	2	-55 °C	347 °F	0.09 in	0.24 in	6.1 mm	2.29 mm
Vishay Dale CMF07330K00GNEA	0.5 W	0.5 W	2 %	Axial	330 kOhms	Flame Retardant Coating, Moisture Resistant, Safety	Metal Film	Axial	200 ppm/°C	2	-55 °C	347 °F	0.09 in	0.24 in	6.1 mm	2.29 mm
Vishay Dale CMF07200K00JKBF	0.5 W	0.5 W	5 %	Axial	200000 Ohms	Flame Retardant Coating, Moisture Resistant, Safety	Metal Film	Axial	100 ppm/°C	2	-55 °C	347 °F	0.09 in	0.24 in	6.1 mm	2.29 mm
Vishay Dale CMF07220R00GLEK	0.5 W	0.5 W	2 %	Axial	220 Ohms	Flame Retardant Coating, Moisture Resistant, Safety	Metal Film	Axial	150 ppm/°C	2	-55 °C	347 °F	0.09 in	0.24 in	6.1 mm	2.29 mm
Vishay Dale CMF07100K00JKEK	0.5 W	0.5 W	5 %	Axial	100 kOhms	Flame Retardant Coating, Moisture Resistant, Safety	Metal Film	Axial	100 ppm/°C	2	-55 °C	347 °F	0.09 in	0.24 in	6.1 mm	2.29 mm
Vishay Dale CMF07100R00JNR6	0.5 W	0.5 W	5 %	Axial	100 Ohms	Flame Retardant Coating, Moisture Resistant, Safety	Metal Film	Axial	200 ppm/°C	2	-55 °C	347 °F	0.09 in	0.24 in	6.1 mm	2.29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.07

Description

General part information

CMF07 Series

3.3 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, Moisture Resistant, Safety Metal Film
