Description
General part information

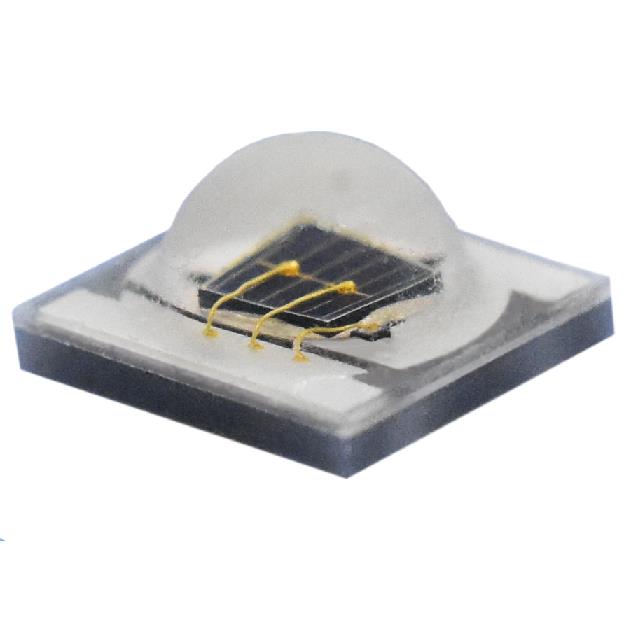

AU3535C-YIR-700MA-26301
Infrared (IR) Emitter 850nm 1.9V 1A 150mW/sr @ 700mA (Typ) 120° 1414 (3535 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | AU3535C-YIR-700MA-26301 |
|---|---|
| Current - DC Forward (If) (Max) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | 1414 (3535 Metric) |
| Radiant Intensity (Ie) Min (Typical) | 150 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength | 850 nm |
