4932
ActiveAdafruit Industries LLC

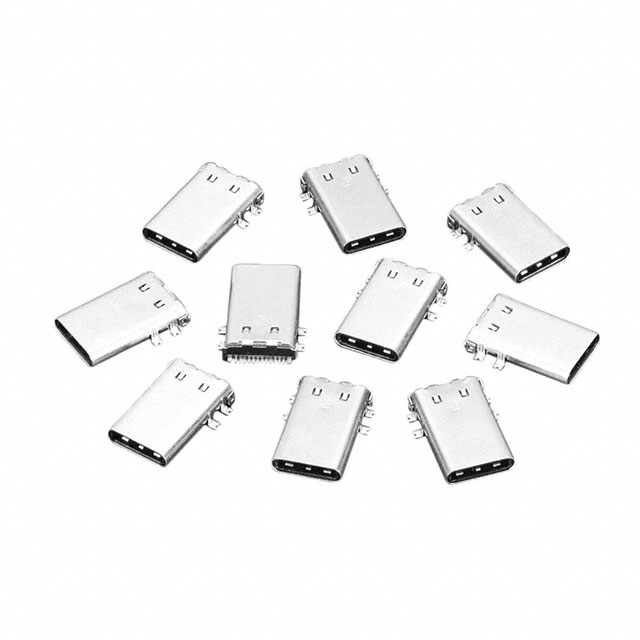

EDGE-LAUNCH USB TYPE C SMT PLUG
4932
ActiveAdafruit Industries LLC
EDGE-LAUNCH USB TYPE C SMT PLUG
Description
General part information
4932
USB-C (USB TYPE-C) Plug Connector 24 (12+12 Dummy) Position Surface Mount, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 4932 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating | 3 A |
| Features | Solder Retention |
| Gender | Plug |
| Mating Cycles | 10000 cycles |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Contacts (Dummy) | 12 |
| Number of Contacts (Functional) | 12 |
| Number of Ports | 1 |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Termination | Solder |
