M3TEK-1006J

Active

IDC CABLE - MSD10K/MC10G/MCE10K

Search across all available documentation for this part.

Active

IDC CABLE - MSD10K/MC10G/MCE10K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

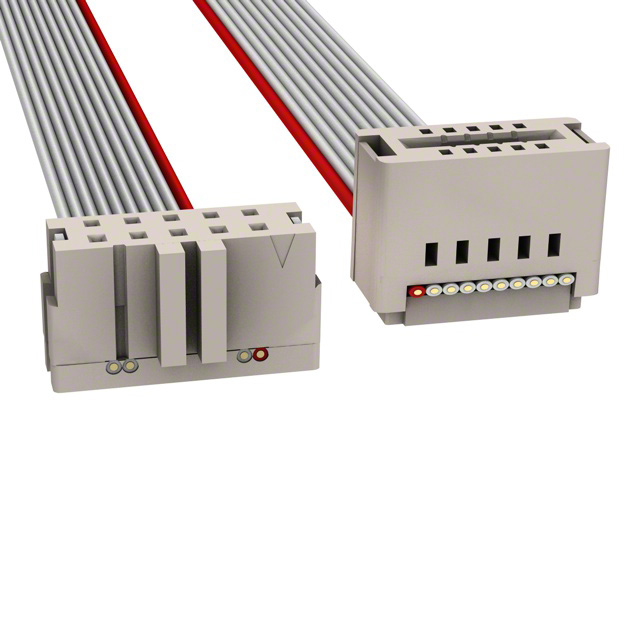

10 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")

Technical documentation and resources

Parameters and characteristics commom to parts in this series

IDC CABLE - MSD10K/MC10M/MCE10K

Part	Pitch - Cable	Pitch - Cable	Number of Rows	Shielding	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch - Connector	Pitch - Connector	Number of Positions	Features	Contact Finish	Length [x]	Length [x]	Color	Length	Length	Length
3M M3TEK-1036R	0.05 "	1.27 mm	2	Unshielded	IDC	0.76 Ám	30 Áin	Socket to Card Edge	0.1 in	2.54 mm	10	Polarizing Key	Gold	3 ft	914.4 mm	Multiple, Ribbon
3M M3TEK-1006J	0.05 "	1.27 mm	2	Unshielded	IDC	0.76 Ám	30 Áin	Socket to Card Edge	0.1 in	2.54 mm	10	Polarizing Key	Gold				152.4 mm	6 "	0.5 '
3M M3TEK-1018R	0.05 "	1.27 mm	2	Unshielded	IDC	0.76 Ám	30 Áin	Socket to Card Edge	0.1 in	2.54 mm	10	Polarizing Key	Gold	1.5 ft	457.2 mm	Multiple, Ribbon
3M M3TEK-1018J	0.05 "	1.27 mm	2	Unshielded	IDC	0.76 Ám	30 Áin	Socket to Card Edge	0.1 in	2.54 mm	10	Polarizing Key	Gold	1.5 ft	457.2 mm
3M M3TEK-2606R	0.05 "	1.27 mm	2	Unshielded	IDC	0.76 Ám	30 Áin	Socket to Card Edge	0.1 in	2.54 mm	26	Polarizing Key	Gold			Multiple, Ribbon	152.4 mm	6 "	0.5 '
