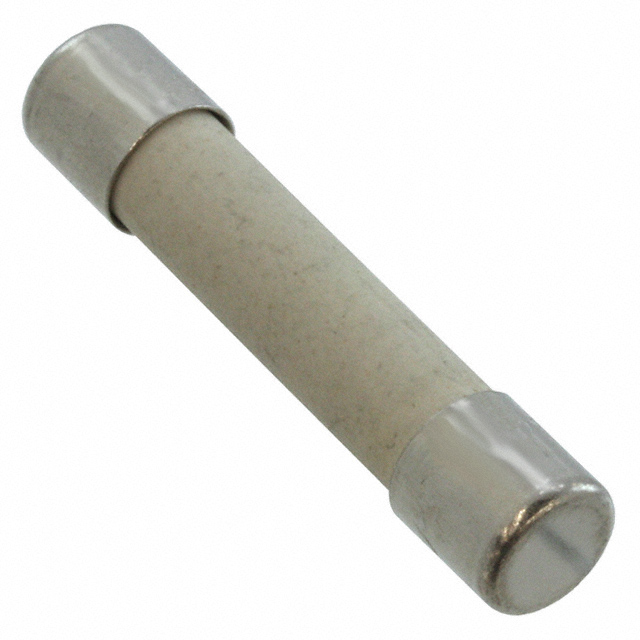

3AB 8-R
ObsoleteBel Fuse Inc.
FUSE CERAMIC 8A 250VAC 3AB 3AG
3AB 8-R
ObsoleteBel Fuse Inc.
FUSE CERAMIC 8A 250VAC 3AB 3AG
Description
General part information
3AB 8-R
8 A 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
Technical Specifications
Parameters and characteristics for this part
| Specification | 3AB 8-R |
|---|---|
| Approval Agency | CSA, CE, cURus, PSE |
| Breaking Capacity | 200 A |
| Current Rating | 8 A |
| DC Cold Resistance | 0.01 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 184 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 3AG, 1/4" x 1-1/4", 3AB |
| Package Diameter | 0.25 in |
| Package Length | 1.25 in |
| Package Name | 3AB, 3AG |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.25 in |
| Size / Dimension Length | 1.252 in |
| Voltage Rating - AC | 250 V |
