RT-BC0008-163CU

Active

Russtech Engineering

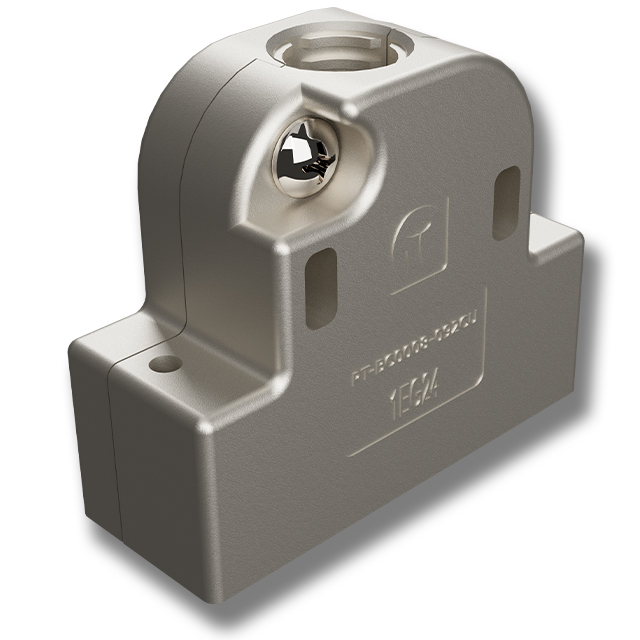

BACKSHELL, DSUB, 180DEG, SZ3

Search across all available documentation for this part.

Active

Russtech Engineering

BACKSHELL, DSUB, 180DEG, SZ3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RT-BC0008-163CU	RT-BC0008 Series

Accessory Type	Two Piece Backshell	Two Piece Backshell
Cable Exit	180 °	180 °
Cable Type	Round	Round
Color	Silver	Silver
Compatible D-Sub Size	HD44pos, 25pos	HD15pos, 9pos, 15pos, HD26pos, HD44pos, 25pos, 37pos, HD62pos
Compatible Shell Size	B	E, A, B, C
Features	Full Perimeter EMI Lip	Full Perimeter EMI Lip
Hardware	Trilobular Screws	Trilobular Screws
Material	Thermoplastic, Glass Reinforced	Thermoplastic, Glass Reinforced
Number of Positions	-	9 - 37
Plating	Electroless Nickel	Electroless Nickel
Primary Material	Plastic	Plastic
Shielding	Shielded	Shielded

BACKSHELL, DSUB, 180DEG, SZ1

Part	Number of Positions	Shielding	Compatible D-Sub Size	Cable Exit	Hardware	Compatible Shell Size	Material	Plating	Accessory Type	Color	Primary Material	Cable Type	Features
Russtech Engineering RT-BC0008-091CU	9	Shielded	9pos, HD15pos	180 °	Trilobular Screws	E	Thermoplastic, Glass Reinforced	Electroless Nickel	Two Piece Backshell	Silver	Plastic	Round	Full Perimeter EMI Lip
Russtech Engineering RT-BC0008-092CU	15	Shielded	15pos, HD26pos	180 °	Trilobular Screws	A	Thermoplastic, Glass Reinforced	Electroless Nickel	Two Piece Backshell	Silver	Plastic	Round	Full Perimeter EMI Lip
Russtech Engineering RT-BC0008-152CU	15	Shielded	15pos, HD26pos	180 °	Trilobular Screws	A	Thermoplastic, Glass Reinforced	Electroless Nickel	Two Piece Backshell	Silver	Plastic	Round
Russtech Engineering RT-BC0008-163CU		Shielded	25pos, HD44pos	180 °	Trilobular Screws	B	Thermoplastic, Glass Reinforced	Electroless Nickel	Two Piece Backshell	Silver	Plastic	Round	Full Perimeter EMI Lip
Russtech Engineering RT-BC0008-123CU		Shielded	25pos, HD44pos	180 °	Trilobular Screws	B	Thermoplastic, Glass Reinforced	Electroless Nickel	Two Piece Backshell	Silver	Plastic	Round	Full Perimeter EMI Lip
Russtech Engineering RT-BC0008-164CU	37	Shielded	37pos, HD62pos	180 °	Trilobular Screws	C	Thermoplastic, Glass Reinforced	Electroless Nickel	Two Piece Backshell	Silver	Plastic	Round	Full Perimeter EMI Lip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position Two Piece Backshell Connector Silver 180° Shielded
