FMCA2483-12
ActiveFairview Microwave
COAX CBL 4.3/10 TO 7/16 DIN 12"
FMCA2483-12
ActiveFairview Microwave
COAX CBL 4.3/10 TO 7/16 DIN 12"
Description
General part information
FMCA2483-12

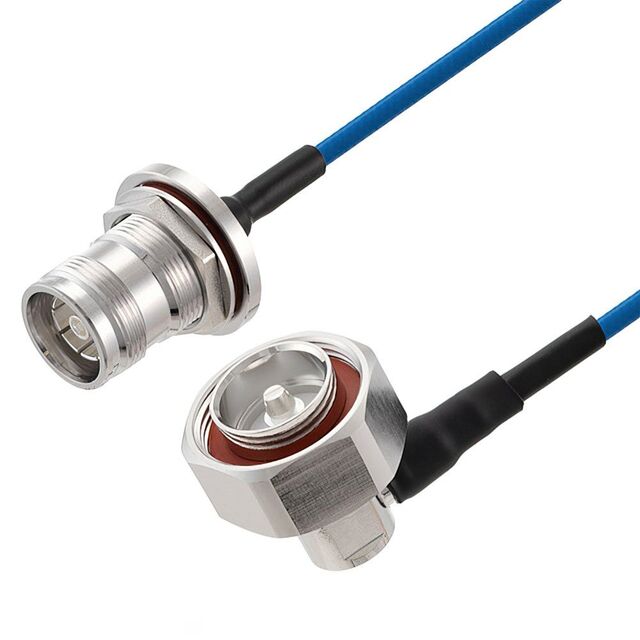

Cable Assembly Coaxial 4.3/10 to 7/16 DIN TFT-402LF 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2483-12 |
|---|---|
| 1st Connector | 4.3/10 Jack |
| 1st Connector - Type | Jack |
| 1st Connector Dimension (1) | 4.3 mm, 4.3 |
| 1st Connector Dimension (2) | 10, 10 mm |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Size (Dimension 1) | 4.3 mm |
| 1st Connector Size (Dimension 2) | 10 mm |
| 1st Connector Type | Jack |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, 7/16 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 402LF, TFT |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.3/10 to 7/16 DIN |
