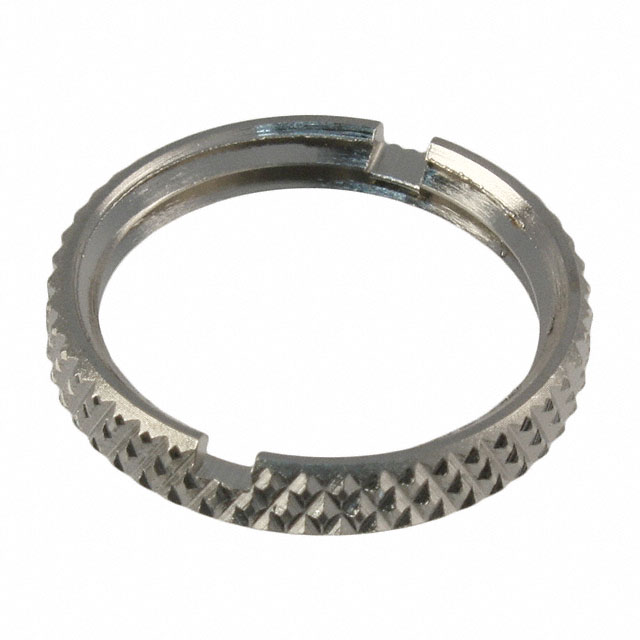

364KNT

Active

Winchester Interconnect

CONN KNURLED NUT FOR BNC JACKS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

364KNT

Active

Winchester Interconnect

CONN KNURLED NUT FOR BNC JACKS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	364KNT

Accessory Type	Nut, Knurled
Body Finish	Nickel
Body Material	Brass
Color	Silver
Connector Style	BNC
For Use With/Related Products	BNC Jacks

- Series

Part	Connector Style	Center Contact Material	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Housing Color	Impedance	Number of Ports	Frequency - Max [Max]	Mounting Feature	Center Contact Plating	Contact Termination	Connector Type	Body Finish	Shield Termination	Mating Cycles	Adapter Series	Style	Impedance	Adapter Type	Mounting Type	Conversion Type	Center Gender	Convert To (Adapter End)	Convert From (Adapter End)	For Use With/Related Products	Color	Accessory Type	Voltage Rating	Fastening Type	Insertion Loss	Ingress Protection	Features
Winchester Interconnect 917A524	SMA	Brass	Brass	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms	1	12.5 GHz	Flange	Gold	Solder Cup	Female Socket Jack	Nickel	Solder	500
Winchester Interconnect 830A509		Brass	Brass			Polypropylene (PP)				500 MHz					Nickel			F to F	Straight	Non-Constant	Plug to Plug	Free Hanging (In-Line)	Same Series	Male to Male	F Plug Male Pin	F Plug Male Pin
Winchester Interconnect 364KNT	BNC		Brass												Nickel												BNC Jacks	Silver	Knurled Nut
Winchester Interconnect 364A595	BNC	Phosphor Bronze	Brass	-40 °C	165 °C	Polypropylene (PP)	Silver White	50 Ohms	1	4 GHz	Bulkhead - Front Side Nut	Gold	Solder	Female Socket Jack	Nickel	Solder	500					Panel Mount Right Angle Through Hole								500 V	Bayonet Lock	0.2 dB	Weatherproof	Board Guide Isolated
Winchester Interconnect 5317505		Brass	Brass	-55 °C	100 °C			50 Ohms		1 GHz		Gold			Nickel			TNC to UHF	Straight		Plug to Jack	Free Hanging (In-Line)	Between Series		Female Socket UHF Jack
Winchester Interconnect 3315505		Brass	Brass	-55 °C	100 °C			50 Ohms		1 GHz		Gold			Nickel			BNC to TNC	Straight		Plug to Jack	Free Hanging (In-Line)	Between Series		Female Socket TNC Jack	BNC Plug Male Pin					Bayonet Lock Threaded
Winchester Interconnect 9311505		Brass	Brass			Polytetrafluoroethylene (PTFE)						Gold			Nickel				Straight		Plug to Jack	Free Hanging (In-Line)	Between Series		Female Socket N Jack	SMA Plug Male Pin
Winchester Interconnect 3309505		Brass	Brass	-55 °C	100 °C			50 Ohms		1 GHz		Gold			Nickel			BNC to SMA	Straight		Plug to Plug	Free Hanging (In-Line)	Between Series	Male to Male	Male Pin SMA Plug	BNC Plug Male Pin					Bayonet Lock Threaded
Winchester Interconnect 1309505			Brass												Nickel				Straight		Plug to Plug	Free Hanging (In-Line)	Between Series	Male to Male	Male Pin SMA Plug	N Plug Male Pin
Winchester Interconnect KC-79-238-M06

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

Connector Nut, Knurled For BNC Jacks

Documents

Technical documentation and resources
