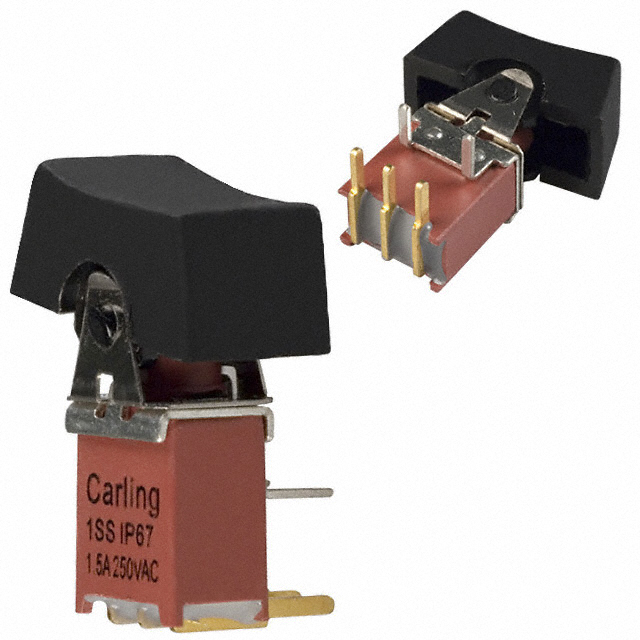

1SS-WMSP1-R1/2-M6GE

Active

Carling Technologies

SWITCH ROCKER SPDT 3A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH ROCKER SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH ROCKER SPDT 3A 125V

Part	Mounting Type	Switch Function	Ingress Protection	Current Rating (Amps)	Features	Voltage Rating - DC	Termination Style	Electrical Life	Color - Actuator/Cap	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Actuator Marking	Circuit
Carling Technologies 1SS-WMSP1-R1/2-M6GE	Through Hole, Right Angle	On-On	IP67 - Dust Tight, Waterproof	3 A	Epoxy Sealed Terminals	28 V	PC Pin	50000 Cycles	Black	Concave (Curved)	-30 ░C	85 °C	125 V	No Marking	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.05

General part information

Rocker Switch SPDT 3A (AC/DC) 125 V Through Hole, Right Angle

Technical documentation and resources

No documents available
