Description
General part information

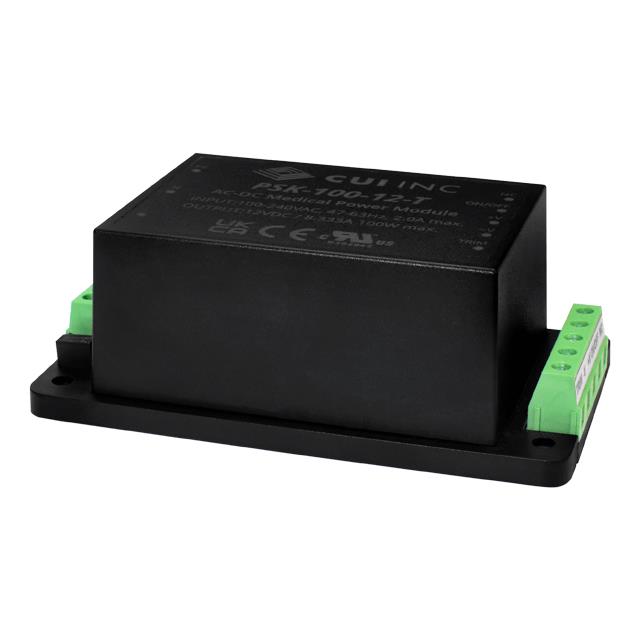

PSK-100-12-T
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PSK-100-12-T |
|---|---|
| Applications | Medical |
| Approval Agency | CE, UKCA, cURus |
| Current - Output 1 | 8.33 A |
| Efficiency | 90 % |
| Features | Universal Input, Remote On/Off, Adjustable Output, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 100 W |
| Size / Dimension Height | 1.59 in |
| Size / Dimension Length | 4.41 in |
| Size / Dimension Width | 2.54 in |
| Standard Number | 60601-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
