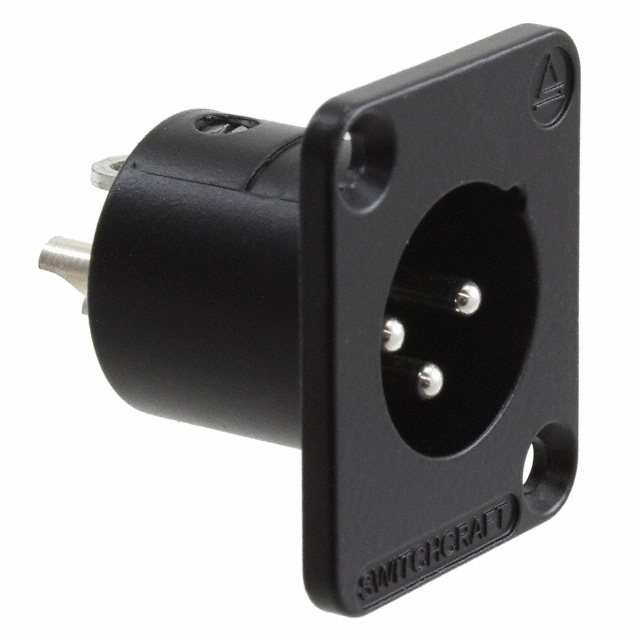

DE3MB

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT MALE XLR 3P SOLDER CUP

Part	Mounting Feature	Shell Material	Insert Material	Primary Material	Contact Finish - Mating	Fastening Type	Contact Material	Shell Finish	Shell Size - Insert	Orientation	Applications	Features	Connector Type	Color
Switchcraft Inc. DE3MW	Flange	Zinc Alloy	Thermoplastic	Metal	Silver	Latch Lock	Copper Alloy	Nickel	XLR	Keyed	Audio, Instrumentation	Ground	Male Pins, Receptacle	White
Switchcraft Inc. DE3MB	Flange	Zinc Alloy	Thermoplastic	Metal	Silver	Latch Lock	Copper Alloy	Black	XLR	Keyed	Audio, Instrumentation	Ground	Male Pins, Receptacle	Black
Switchcraft Inc. DE3MBAU	Flange	Zinc Alloy	Thermoplastic	Metal	Gold	Latch Lock	Copper Alloy	Black	XLR	Keyed	Audio, Instrumentation	Ground	Male Pins, Receptacle	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
