A6X30142193

Active

Siemens

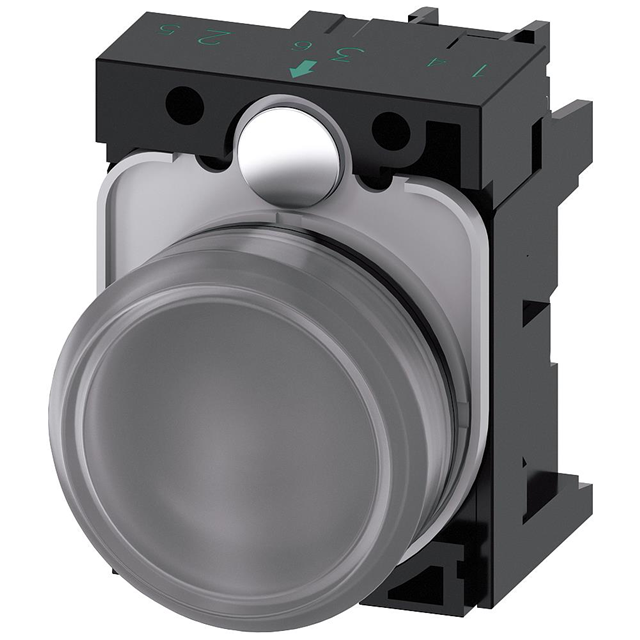

INDICATOR LIGHT. CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6X30142193

Active

Siemens

INDICATOR LIGHT. CLEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6X30142193

Ingress Protection	NEMA 2, IP69K, IP20, IP69, NEMA 3R, NEMA 13, NEMA 4, NEMA 3, IP67, NEMA 4X, NEMA 12, IP66, NEMA 1
Lamp Color	Clear
Lens Color	Colorless
Lens Size [diameter]	22 mm
Lens Transparency	Clear
Millicandela Rating [Max]	1400 mcd
Millicandela Rating [Min]	900 mcd
Panel Cutout Dimensions	0.88 in
Panel Cutout Dimensions	22.3 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Screw Terminal
Type	LED
Voltage	110 V

A6X30142 Series

...

Part	Lens Color	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating [Min]	Millicandela Rating [Max]	Termination Style	Type	Lens Size [diameter]	Lens Transparency	Voltage	Ingress Protection	Lamp Color	Ratings
Siemens A6X30142650	Blue	Round	0.88 in	22.3 mm	280 mcd	710 mcd	Screw Terminal	LED	22 mm	Diffused	24 V	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Blue	AC/DC
Siemens A6X30142163	Green	Round	0.88 in	22.3 mm	900 mcd	1800 mcd	Screw Terminal	LED	22 mm	Diffused	110 V	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Green	AC
Siemens A6X30142125	Amber	Round	0.88 in	22.3 mm	900 mcd	1400 mcd	Screw Terminal	LED	22 mm	Diffused	110 V	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Amber	AC
Siemens A6X30142964	Green	Round	0.88 in	22.3 mm				LED	30 mm	Diffused	110 V	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Green	AC
Siemens A6X30142142	Yellow	Round	0.88 in	22.3 mm	900 mcd	1400 mcd	Screw Terminal	LED	22 mm	Diffused	110 V	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Yellow	AC
Siemens A6X30142698	Colorless	Round	0.88 in	22.3 mm	900 mcd	1400 mcd	Spring Terminal	LED	22 mm	Clear	24 V	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Clear	AC/DC
Siemens A6X30142282	Red	Round	0.88 in	22.3 mm	450 mcd	1120 mcd	Spring Terminal	LED	22 mm	Diffused	230 V	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Red	AC
Siemens A6X30142641	Green	Round	0.88 in	22.3 mm	900 mcd	1800 mcd	Screw Terminal	LED	22 mm	Diffused	24 V	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Green	AC/DC
Siemens A6X30142320	Blue	Round	0.88 in	22.3 mm	280 mcd	710 mcd	Screw Terminal	LED	22 mm	Diffused	230 V	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Blue	AC
Siemens A6X30142162	Green	Round	0.88 in	22.3 mm	900 mcd	1800 mcd	Screw Terminal	LED	22 mm	Diffused	110 V	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Green	AC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 70.86
		10	$ 60.86
		100	$ 57.82

Description

General part information

A6X30142 Series

LED Panel Indicator Clear Clear 110V Screw Terminal
