9462 060500
ActiveBelden Inc.

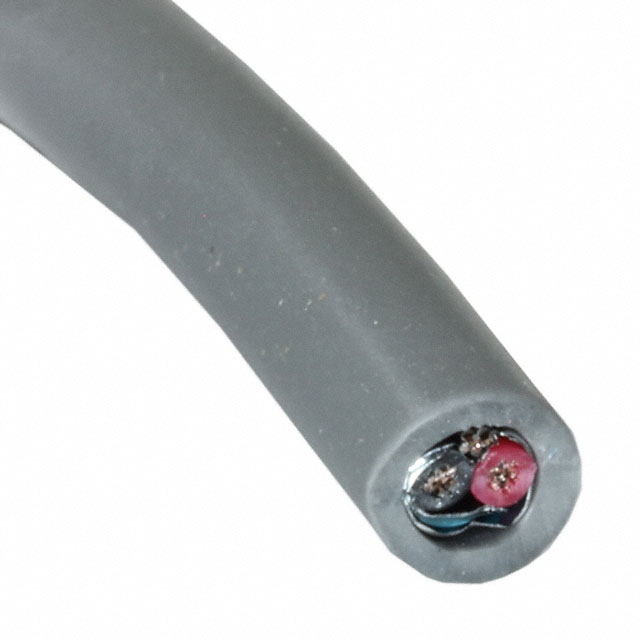

CABLE 2CON 22AWG CHROM SHLD
Deep-Dive with AI
Search across all available documentation for this part.
9462 060500
ActiveBelden Inc.
CABLE 2CON 22AWG CHROM SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9462 060500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 4.72 mm |
| Jacket (Insulation) Diameter [diameter] | 0.186 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket Color | Chrome |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Audio, Instrumentation, Control |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 1.54 | |
| 1000 | $ 1.46 | |||
| 1500 | $ 1.42 | |||
| 2500 | $ 1.37 | |||
| 3500 | $ 1.33 | |||
| 5000 | $ 1.30 | |||
Description
General part information
9462 Series
2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 22 AWG Foil 500.0' (152.4m)
