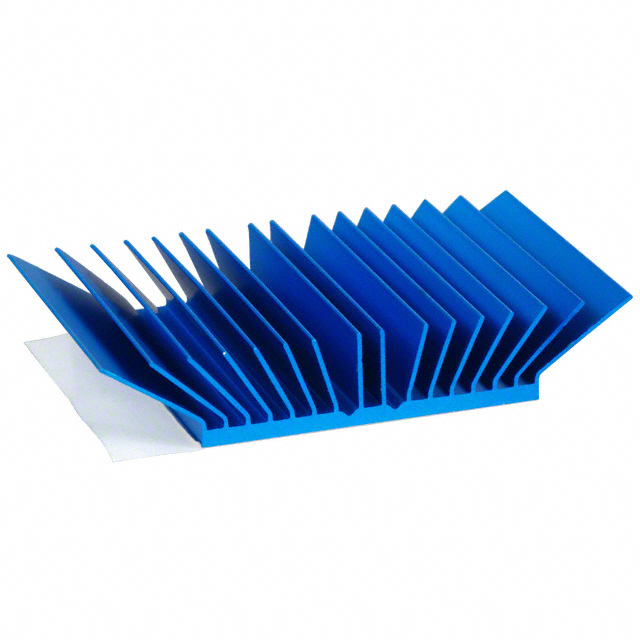

Specification	ATS-52450G-C1-R0

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	0.492 in
Length	1.772 in
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	BGA
Shape	Square, Angled Fins
Thermal Resistance	2.1 °C/W
Type	Top Mount
Width	1.772 in

BGA with Thermal Tap Series

...

Part	Type	Package Cooled	Material	Length	Attachment Method	Thermal Resistance	Width	Fin Height	Shape	Material Finish
Advanced Thermal Solutions Inc. ATS-54425W-C0-R0	Top Mount	BGA	Aluminum	1.673 in	Adhesive (Not Included) Thermal Tape	2.2 °C/W	1.673 in	0.965 in	Fins Square	Black Anodized
Advanced Thermal Solutions Inc. ATS-54450W-C0-R0	Top Mount	BGA	Aluminum	1.772 in	Adhesive (Not Included) Thermal Tape	2.1 °C/W	1.772 in	0.965 in	Fins Square	Black Anodized
Advanced Thermal Solutions Inc. ATS-54425R-C0-R0	Top Mount	BGA	Aluminum	1.673 in	Adhesive (Not Included) Thermal Tape	3 °C/W	1.673 in	0.768 in	Fins Square	Black Anodized
Advanced Thermal Solutions Inc. ATS-54425K-C0-R0	Top Mount	BGA	Aluminum	1.673 in	Adhesive (Not Included) Thermal Tape	4.3 °C/W	1.673 in	0.571 in	Fins Square	Black Anodized
Advanced Thermal Solutions Inc. ATS-54400D-C0-R0	Top Mount	BGA	Aluminum	1.575 in	Adhesive (Not Included) Thermal Tape	9.1 °C/W	1.575 in	0.374 in	Fins Square	Black Anodized
Advanced Thermal Solutions Inc. ATS-54400K-C0-R0	Top Mount	BGA	Aluminum	1.575 in	Adhesive (Not Included) Thermal Tape	4.6 °C/W	1.575 in	0.571 in	Fins Square	Black Anodized
Advanced Thermal Solutions Inc. ATS-54450R-C0-R0	Top Mount	BGA	Aluminum	1.772 in	Adhesive (Not Included) Thermal Tape	2.8 °C/W	1.772 in	0.768 in	Fins Square	Black Anodized
Advanced Thermal Solutions Inc. ATS-54450D-C0-R0	Top Mount	BGA	Aluminum	1.772 in	Adhesive (Not Included) Thermal Tape	8.4 °C/W	1.772 in	0.374 in	Fins Square	Black Anodized
Advanced Thermal Solutions Inc. ATS-54425D-C0-R0	Top Mount	BGA	Aluminum	1.673 in	Adhesive (Not Included) Thermal Tape	8.4 °C/W	1.673 in	0.374 in	Fins Square	Black Anodized

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ATS-52450G-C1-R0 | Datasheet

Datasheet
