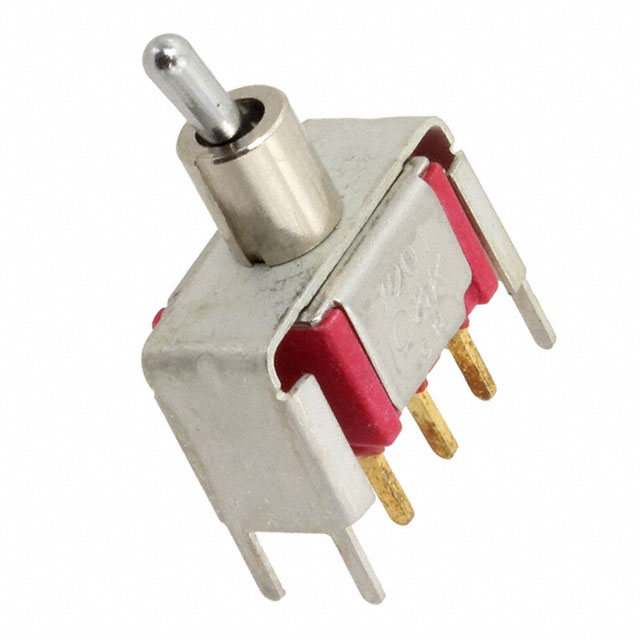

7201MD9V6GE
ActiveSWITCH TOGGLE DPDT 5A 120V

7201MD9V6GE
ActiveSWITCH TOGGLE DPDT 5A 120V
Description
General part information
70000 Series Series
With a wide variety of actuator and termination options available, the 7000 series miniature toggle switches from C&K, which now includes an optional knurled cap on the locking lever options, are used by designers throughout the medical equipment and telecommunications industry to give product designs the long-lasting, high performance switch they need to succeed. The 7000 series are epoxy terminal-seal compatible with bottom wash cleaning and are engineered to be both multi-pole and multi-position, ensuring a perfect fit, no matter the design specifications.
Technical Specifications
Parameters and characteristics for this part
| Specification | 7201MD9V6GE |
|---|---|
| Actuator Length | 6.86 mm |
| Actuator Material | Chrome Plated, Brass |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | DPDT |
| Current Rating | 5 A |
| Electrical Life (Cycles) | 100000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
