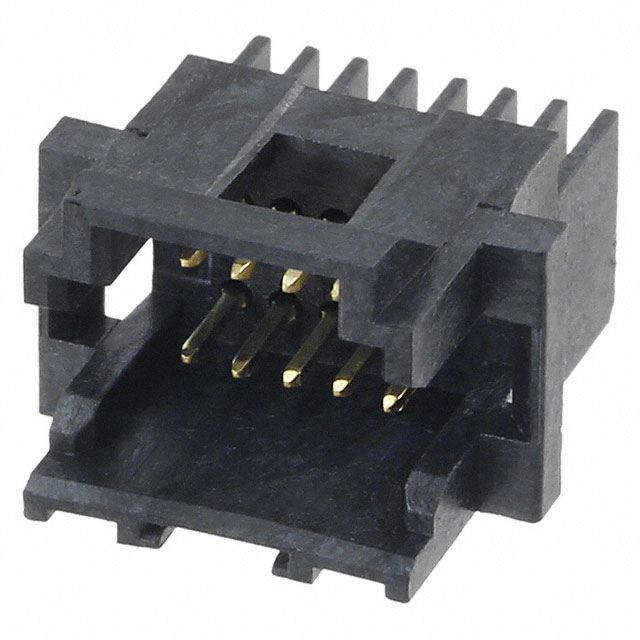

6-104477-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-104477-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-104477-2 | 104477 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Mating | 0.125 in | 0.125 in |
| Contact Length - Mating | 3.18 mm | 3.18 mm |
| Contact Length - Post | 0.145 in | 0.145 in |
| Contact Length - Post | 3.68 mm | 3.68 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Guide | Board Guide |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 10 | 10 - 100 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 2 Wall | Shrouded - 2 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 30 VAC | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1200 | $ 2.48 | |
104477 Series
CONN HEADER R/A 30POS 1.27MM
| Part | Shrouding | Mounting Type | Contact Finish - Mating | Contact Material | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Features | Number of Rows | Voltage Rating | Number of Positions | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Shape | Pitch - Mating | Pitch - Mating | Insulation Color | Material Flammability Rating | Connector Type | Contact Type | Applications | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Min] | Operating Temperature [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104477-3 | Shrouded - 2 Wall | Through Hole, Right Angle | Gold | Copper Alloy | 7.37 mm | 0.29 in | 0.145 in | 3.68 mm | Tin-Lead | Board Guide | 2 | 30 VAC | 30 | Thermoplastic | 150 Áin | 3.81 Ám | Board to Board, Cable | All | 30 Áin | 0.76 Ám | 0.125 in | 3.18 mm | Latch Holder | Circular | 0.05 in | 1.27 mm | Black | UL94 V-0 | Header | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Solder |
TE Connectivity AMP Connectors 6-104477-2 | Shrouded - 2 Wall | Through Hole, Right Angle | Gold | Copper Alloy | 7.37 mm | 0.29 in | 0.145 in | 3.68 mm | Tin | Board Guide | 2 | 30 VAC | 10 | Thermoplastic | 150 Áin | 3.81 Ám | Board to Board, Cable | All | 30 Áin | 0.76 Ám | 0.125 in | 3.18 mm | Latch Holder | Circular | 0.05 in | 1.27 mm | Black | UL94 V-0 | Header | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Solder |
TE Connectivity AMP Connectors 5-104477-9 | Shrouded - 2 Wall | Through Hole, Right Angle | Gold | Copper Alloy | 7.37 mm | 0.29 in | 0.145 in | 3.68 mm | Tin | Board Guide | 2 | 30 VAC | 60 | Thermoplastic | 150 Áin | 3.81 Ám | Board to Board, Cable | All | 30 Áin | 0.76 Ám | 0.125 in | 3.18 mm | Latch Holder | Circular | 0.05 in | 1.27 mm | Black | UL94 V-0 | Header | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Solder |
TE Connectivity AMP Connectors 5-104477-3 | Shrouded - 2 Wall | Through Hole, Right Angle | Gold | Copper Alloy | 7.37 mm | 0.29 in | 0.145 in | 3.68 mm | Tin | Board Guide | 2 | 30 VAC | 30 | Thermoplastic | 150 Áin | 3.81 Ám | Board to Board, Cable | All | 30 Áin | 0.76 Ám | 0.125 in | 3.18 mm | Latch Holder | Circular | 0.05 in | 1.27 mm | Black | UL94 V-0 | Header | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Solder |
TE Connectivity AMP Connectors 5-104477-2 | Shrouded - 2 Wall | Through Hole, Right Angle | Gold | Copper Alloy | 7.37 mm | 0.29 in | 0.145 in | 3.68 mm | Tin | Board Guide | 2 | 30 VAC | 20 | Thermoplastic | 150 Áin | 3.81 Ám | Board to Board, Cable | All | 30 Áin | 0.76 Ám | 0.125 in | 3.18 mm | Latch Holder | Circular | 0.05 in | 1.27 mm | Black | UL94 V-0 | Header | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Solder |
TE Connectivity AMP Connectors 104477-4 | Shrouded - 2 Wall | Through Hole, Right Angle | Gold | Copper Alloy | 7.37 mm | 0.29 in | 0.145 in | 3.68 mm | Tin-Lead | Board Guide | 2 | 30 VAC | 40 | Thermoplastic | 150 Áin | 3.81 Ám | Board to Board, Cable | All | 30 Áin | 0.76 Ám | 0.125 in | 3.18 mm | Latch Holder | Circular | 0.05 in | 1.27 mm | Black | UL94 V-0 | Header | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Solder |
TE Connectivity AMP Connectors 5-104477-7 | Shrouded - 2 Wall | Through Hole, Right Angle | Gold | Copper Alloy | 7.37 mm | 0.29 in | 0.145 in | 3.68 mm | Tin | Board Guide | 2 | 30 VAC | 100 | Thermoplastic | 150 Áin | 3.81 Ám | Board to Board, Cable | All | 30 Áin | 0.76 Ám | 0.125 in | 3.18 mm | Latch Holder | Circular | 0.05 in | 1.27 mm | Black | UL94 V-0 | Header | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Solder |
TE Connectivity AMP Connectors 104477-6 | Shrouded - 2 Wall | Through Hole, Right Angle | Gold | Copper Alloy | 7.37 mm | 0.29 in | 0.145 in | 3.68 mm | Tin-Lead | Board Guide | 2 | 30 VAC | 80 | Thermoplastic | 150 Áin | 3.81 Ám | Board to Board, Cable | All | 30 Áin | 0.76 Ám | 0.125 in | 3.18 mm | Latch Holder | Circular | 0.05 in | 1.27 mm | Black | UL94 V-0 | Header | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Solder |
TE Connectivity AMP Connectors 104477-7 | Shrouded - 2 Wall | Through Hole, Right Angle | Gold | Copper Alloy | 7.37 mm | 0.29 in | 0.145 in | 3.68 mm | Tin-Lead | Board Guide | 2 | 30 VAC | 100 | Thermoplastic | 150 Áin | 3.81 Ám | Board to Board, Cable | All | 30 Áin | 0.76 Ám | 0.125 in | 3.18 mm | Latch Holder | Circular | 0.05 in | 1.27 mm | Black | UL94 V-0 | Header | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Solder |
TE Connectivity AMP Connectors 104477-9 | Shrouded - 2 Wall | Through Hole, Right Angle | Gold | Copper Alloy | 7.37 mm | 0.29 in | 0.145 in | 3.68 mm | Tin-Lead | Board Guide | 2 | 30 VAC | 60 | Thermoplastic | 150 Áin | 3.81 Ám | Board to Board, Cable | All | 30 Áin | 0.76 Ám | 0.125 in | 3.18 mm | Latch Holder | Circular | 0.05 in | 1.27 mm | Black | UL94 V-0 | Header | Male Pin | Automotive, General Purpose, Medical, Telecommunications | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Solder |
Description
General part information
104477 Series
Connector Header Through Hole, Right Angle 10 position 0.050" (1.27mm)
