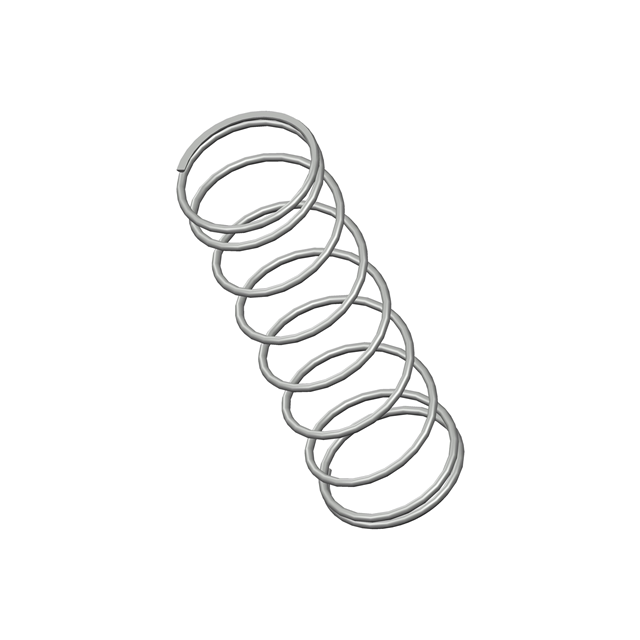

11513CS
ActiveCentury Spring Corp
COMP O=1.375,L= 4.38,W= .079
11513CS
ActiveCentury Spring Corp
COMP O=1.375,L= 4.38,W= .079
Description
General part information
11513CS
COMP O=1.375,L= 4.38,W= .079
Technical Specifications
Parameters and characteristics for this part
| Specification | 11513CS |
|---|---|
| Diameter - Inside | 1.217 in |
| Diameter - Outside | 1.375 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 4.38 in |
| Material | Spring Steel |
| Rate (lbs/in) | 3.7 lbs/in |
| Type | Compression |
| Wire Diameter | 0.079 in |
