Description
General part information

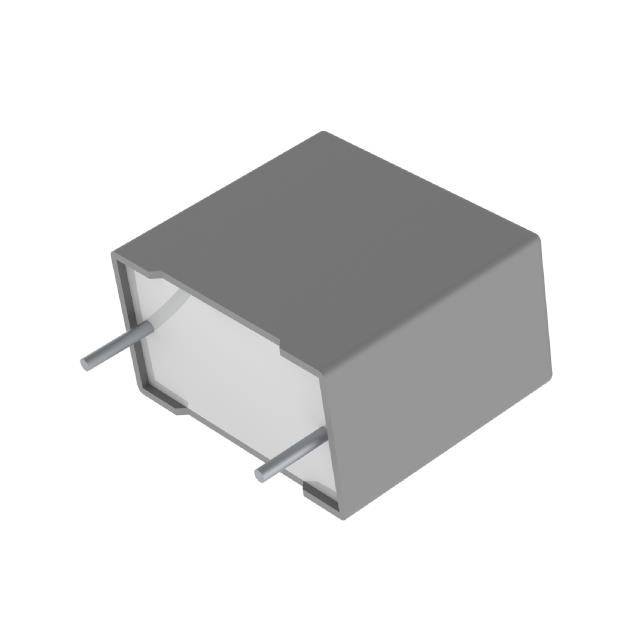

R66ID3100DQ7AJ
Film Capacitor
Technical Specifications
Parameters and characteristics for this part
| Specification | R66ID3100DQ7AJ |
|---|---|
| Applications | Automotive |
| Capacitance | 0.1 µF |
| Dielectric Material | Metallized - Stacked, Polyester, Polyethylene Terephthalate (PET) |
| Height - Seated (Max) | 0.358 in |
| Lead Spacing | 0.295 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.157 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 250 VDC |
