Description

General part information

AGB208NL

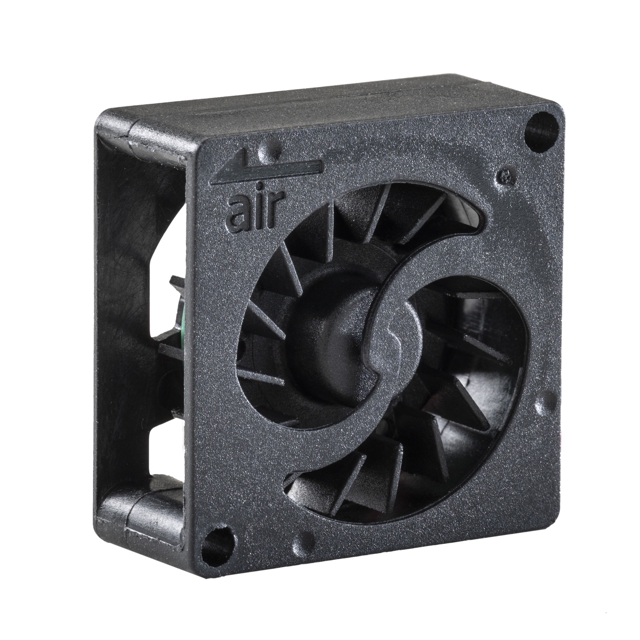

Fan Micro Blower 5VDC Square - 20mm L x 20mm H Axial Groove 0.660 CFM (0.019mł/min) 2 Wire Leads

Technical Specifications

Parameters and characteristics for this part

SpecificationAGB208NL
Air Flow0.66 CFM
Approval AgencyCE
Bearing TypeAxial Groove
Fan TypeMicro Blower
FeaturesAuto Restart, Polarity Protection, Locked Rotor Protection
Ingress Protection DescriptionDust Protected, Waterproof
Ingress Protection IP RatingIP58
Noise14 dB
Operating Temperature (Max)140 °F
Operating Temperature (Min)14 °F
RPM11000 RPM
Size / Dimension Height20 mm
Size / Dimension Length20 mm
Size / Dimension ShapeSquare
Static Pressure0.146 in H2O
Termination2 Wire Leads
Termination Leads Count2 leads
Termination TypeWire Leads
Voltage - Rated5 VAC
Weight0.007 lb
Width8 mm
