170-037-171-000
ObsoleteNorComp Inc.
CONN D-SUB HOUSING PLUG 37POS
170-037-171-000
ObsoleteNorComp Inc.
CONN D-SUB HOUSING PLUG 37POS
Description
General part information
170-037-171-000

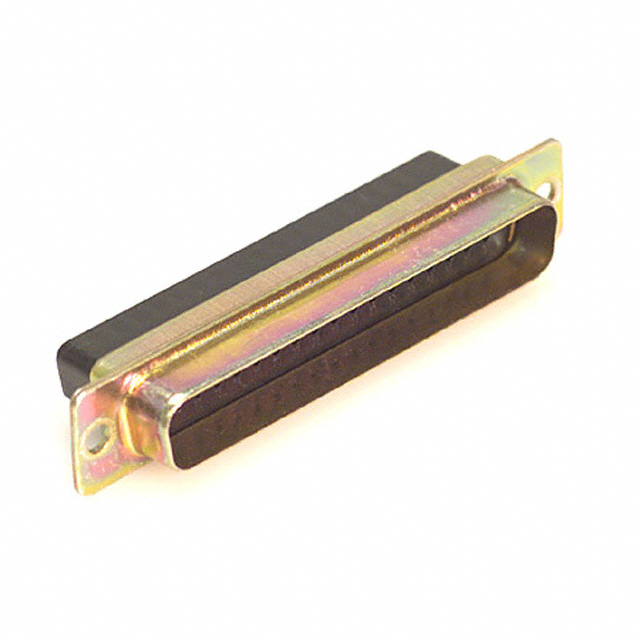

Plug for Male Contacts Housing D-Sub Connector 37 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 170-037-171-000 |
|---|---|
| Color | Black |
| Connector Layout | DC, C |
| Connector Style | D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Finish | Yellow Chromate Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 37 pos |
| Number of Rows | 2 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -50 °C |
| Shell Material | Steel |
| Shell Size | 4 |
