109990013
UnknownSeeed Technology Co., Ltd

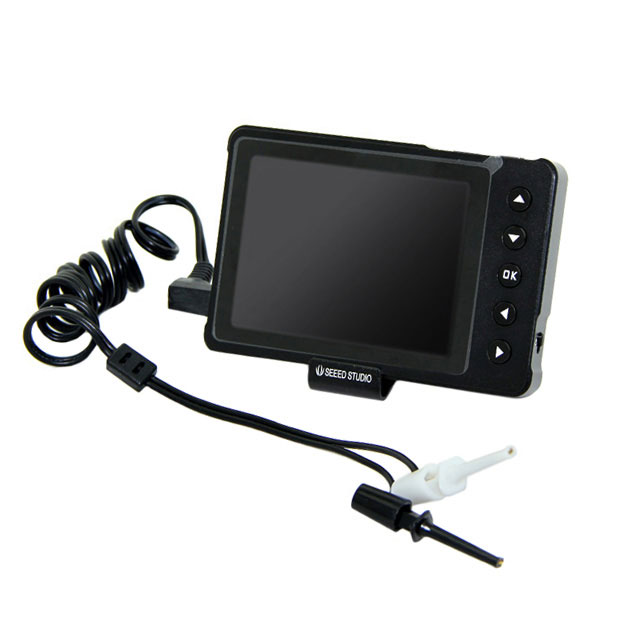

DSO NANO V3
109990013
UnknownSeeed Technology Co., Ltd
DSO NANO V3
Description
General part information
109990013
200 kHz Handheld Oscilloscopes Interface LCD - Color Display 1 Channel 80V Save
Technical Specifications
Parameters and characteristics for this part
| Specification | 109990013 |
|---|---|
| Analog Channels | 1 |
| Bandwidth | 200 kHz |
| Channel Types | Analog |
| Channels (Count) | 1 |
| Display Type | LCD - Color |
| Function | Save |
| Includes | Stand, Case, Cable |
| Input Impedance | 500 kOhm |
| Probe Attenuation | 1 ratio |
| Probe Count | 2 |
| Probe Type | Passive |
| Sampling Rate (Per Second) | 1 MHz |
| Type | Handheld |
| Voltage - Input (Max) | 80 V p-p |
