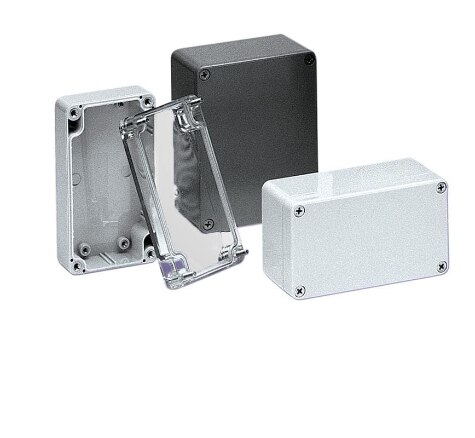

Specification	PN-1337-DG

Area (L x W)	22.3 in²
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Card Guides
Height	3.543 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	2, 12, 13, UL-508, IP65, 4X, 4, NEMA 1
Size / Dimension Length	4.724 in
Size / Dimension Width	4.724 in
Thickness	0.12 in

PN Series

Electrical Enclosures IP65 NEMA 4X Box with Mounting Brackets (6.3 X 3.2 X 2.2 In)

Part	Material	Container Type	Area (L x W)	Design	Height	Ratings	Size / Dimension Length	Size / Dimension Width	Thickness	Material Flammability Rating	Color	Features	Size / Dimension Height	Type	For Use With/Related Products
BUD INDUSTRIES PN-1332-A	Plastic Polycarbonate Polycarbonate (PC)	Box	19.8 in²	Cover Included	2.17 in	12 13 2 4 4X 6 6P IP68 NEMA 1 UL-508	6.3 in	3.15 in	0.11 in	UL94 HB	Gray
BUD INDUSTRIES PN-1324-CMB	Plastic Polycarbonate Polycarbonate (PC)	Box	32.1 in²	Cover Included	2.165 in	12 13 2 4 4X IP65 NEMA 1 UL-508	6.732 in	4.764 in	0.118 in	UL94 HB	Clear Cover/Door Gray	Card Guides Mounting Flange PCB Supports
BUD INDUSTRIES PN-1322-ACMB	Plastic Polycarbonate Polycarbonate (PC)	Box	11.6 in²	Cover Included	2.17 in	12 13 2 4 4X 6 6P IP68 NEMA 1 UL-508	4.53 in	2.56 in	0.12 in	UL94 HB	Clear Cover/Door Gray
BUD INDUSTRIES PN-1334	Plastic Polycarbonate Polycarbonate (PC)	Box	37.2 in²	Cover Included	2.958 in	12 13 2 4 4X IP65 NEMA 1 UL-508	7.874 in	4.724 in	0.12 in	UL94 HB	Gray	Card Guides PCB Supports
BUD INDUSTRIES PN-1336-DGMB	ABS Plastic	Box	22.6 in²	Cover Included	2.362 in	12 13 2 4 4X IP65 NEMA 1 UL-508	4.766 in	4.757 in	0.118 in	UL94 HB	Gray	Card Guides Mounting Flange PCB Supports
BUD INDUSTRIES PN-1343-AC	Plastic Polycarbonate Polycarbonate (PC)	Box	107 in²	Cover Included	4.39 in	12 13 2 4 4X 6 6P IP68 NEMA 1 UL-508	11.81 in	9.06 in	0.14 in	UL94 HB	Clear Cover/Door Gray
BUD INDUSTRIES PNX-91426	Aluminum Metal						7.32 in	2.8 in			Natural		0.062 in	Inner Panel	PN Series
BUD INDUSTRIES PN-1333-AC	Plastic Polycarbonate Polycarbonate (PC)	Box	19.8 in²	Cover Included	3.35 in	12 13 2 4 4X 6 6P IP68 NEMA 1 UL-508	6.3 in	3.15 in	0.14 in	UL94 HB	Clear Cover/Door Gray
BUD INDUSTRIES PN-1330-DG	ABS Plastic	Box	4.03 in²	Cover Included	1.379 in	12 13 2 4 4X IP65 NEMA 1 UL-508	2.047 in	1.969 in	0.1 in	UL94 HB	Gray	Card Guides PCB Supports
BUD INDUSTRIES PN-1337-A	Plastic Polycarbonate Polycarbonate (PC)	Box	22.3 in²	Cover Included	3.54 in	12 13 2 4 4X 6 6P IP68 NEMA 1 UL-508	4.72 in	4.72 in	0.12 in	UL94 HB	Gray
