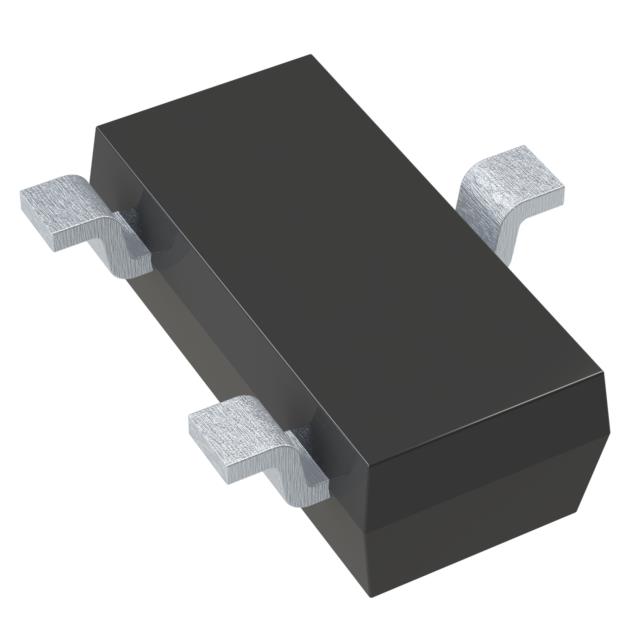

2SA1464-R-AP

Active

Micro Commercial Co

TRANS PNP 40V 0.5A SOT-23

Search across all available documentation for this part.

Active

Micro Commercial Co

TRANS PNP 40V 0.5A SOT-23

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1464-R-AP

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	150
Frequency - Transition	400 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	200 mW
Supplier Device Package	SOT-23
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	750 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TRANS PNP 40V 0.5A SOT-23

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Operating Temperature	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Mounting Type	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Supplier Device Package
Micro Commercial Co 2SA1464-R-AP	150	PNP	150 °C	200 mW	100 nA	SC-59, SOT-23-3, TO-236-3	40 V	750 mV	Surface Mount	400 MHz	500 mA	SOT-23

General part information

Bipolar (BJT) Transistor PNP 40 V 500 mA 400MHz 200 mW Surface Mount SOT-23
