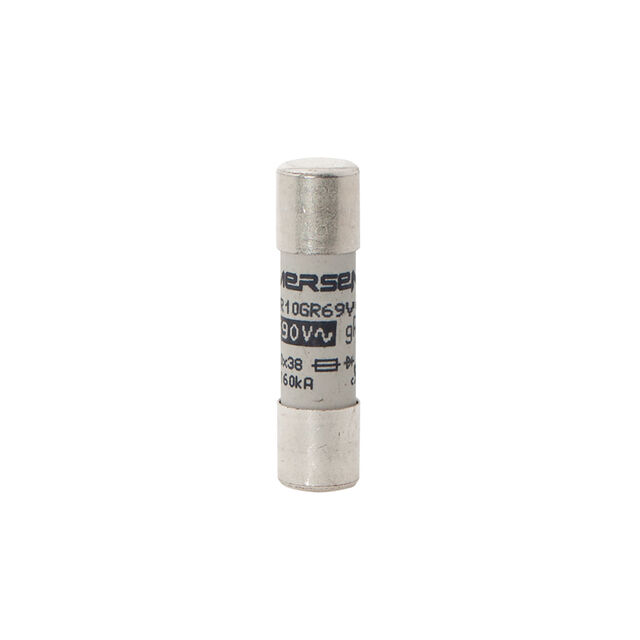

G1014582
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,SEMICONDUCTOR,CLASS GR,ULTR
G1014582
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,SEMICONDUCTOR,CLASS GR,ULTR
Description
General part information
G1014582
30A 700 VAC 500 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | G1014582 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CSA, CE, cURus, CCC |
| Breaking Capacity | 160 kA |
| Class | gR |
| Current Rating | 30 A |
| Fuse Type | Cartridge |
| Melting I²t | 107 |
| Mounting Type | Requires Holder |
| Package / Case | 5AG, 10mm x 38.1mm |
| Package Diameter | 10 mm, 38.1 mm |
| Package Length | 10 mm |
| Package Name | 5AG |
| Package Width | 38.1 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.496 in |
| Voltage Rating - AC | 700 V |
| Voltage Rating - DC | 500 V |
