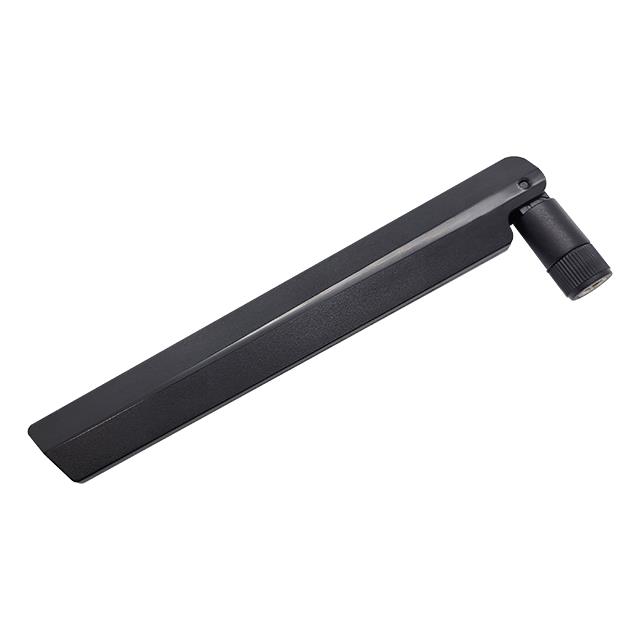

AT5G-19170-3.0BT
RF ANTENNA 5G Blade, Tilt RP-SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AT5G-19170-3.0BT |
|---|---|
| Antenna Type | Tilt, Blade |
| Applications | 5G |
| Frequency (Center/Band) | 5.5GHz, 2.205GHz, 832MHz, 4.15GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 704 MHz |
| Frequency Range (Band 2) Maximum | 2.7 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Frequency Range (Band 3) Maximum | 5 GHz |
| Frequency Range (Band 3) Minimum | 3.3 GHz |
| Frequency Range (Band 4) Maximum | 5.85 GHz |
| Frequency Range (Band 4) Minimum | 5.15 GHz |
| Gain | 1.78 dBi, 2.85 dBi, 2.95 dBi, 5.21 dBi, 3.07 dBi |
| Height (Max) | 6.693 in |
| Mounting Type | Connector Mount |
| Number of Bands | 5 |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male, RP-SMA Male |
| VSWR | 2.65, 3, 2 |
| VSWR | 3, 2.65, 2 |
