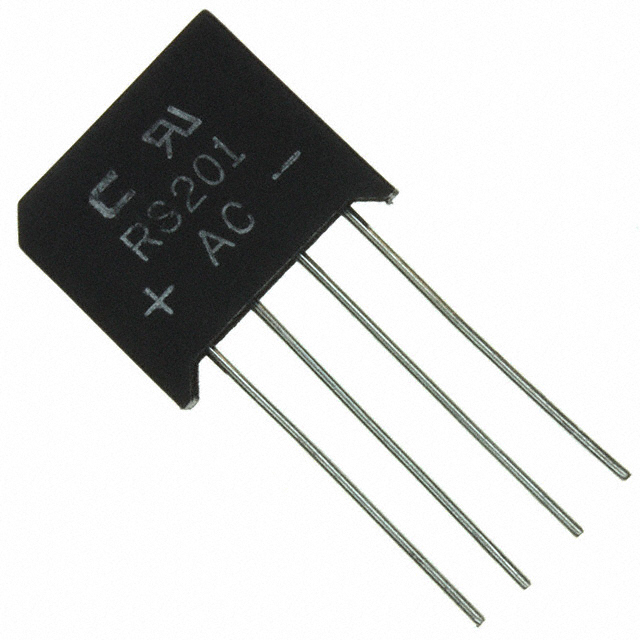

RS201-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 50V 2A RS-2

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 50V 2A RS-2

Technical Specifications

Parameters and characteristics for this part

Specification	RS201-G

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, RS-2
Supplier Device Package	RS-2
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	50 V

BRIDGE RECT 1PHASE 50V 2A RS-2

Part	Mounting Type	Package / Case	Voltage - Peak Reverse (Max) [Max]	Diode Type	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Supplier Device Package	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)
Comchip Technology RS201-G	Through Hole	4-SIP, RS-2	50 V	Single Phase	1.1 V	125 ¯C	-55 °C	Standard	RS-2	10 µA	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 50 V Through Hole RS-2

Technical documentation and resources
