VTC210-561L-RC
ActiveAllied Components International
560H 15% VRT MOUNT TOROIDAL CHOK
VTC210-561L-RC
ActiveAllied Components International
560H 15% VRT MOUNT TOROIDAL CHOK
Description
General part information
VTC210-561L-RC

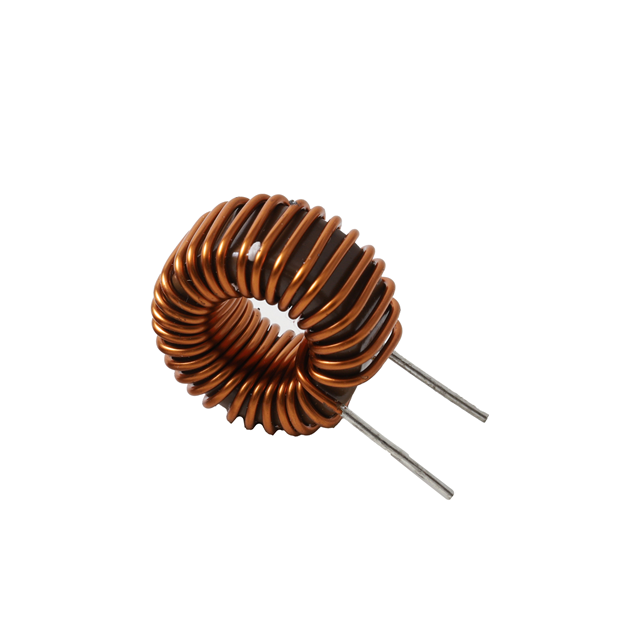

560 µH Unshielded Toroidal Inductor 1.5 A 300mOhm Max Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | VTC210-561L-RC |
|---|---|
| Current Rating | 1.5 A |
| DC Resistance (DCR) (Max) | 300 mOhm |
| Inductance | 560 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.86 in |
| Size / Dimension Length | 0.45 in |
| Tolerance | 15 % |
| Type | Toroidal |
