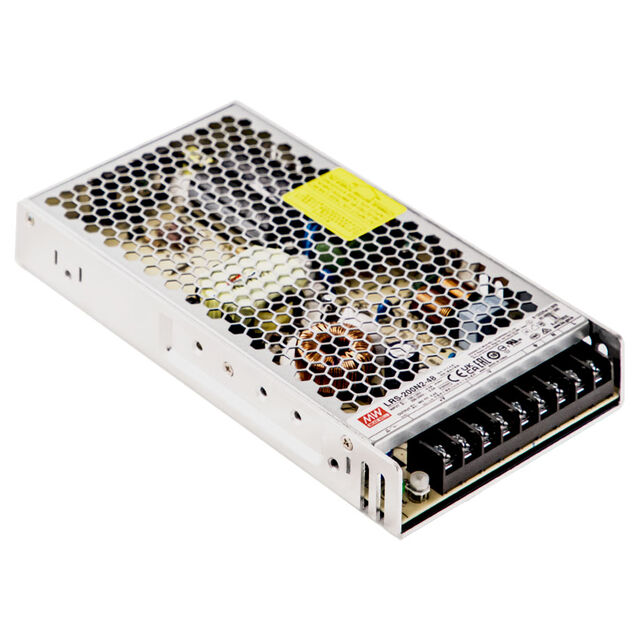

LRS-200N2-48
ActiveMEAN WELL USA Inc.
O/P +48V4.4A
LRS-200N2-48
ActiveMEAN WELL USA Inc.
O/P +48V4.4A
Description
General part information
LRS-200N2-48
Enclosed AC DC Converters 1 Output 48V 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | LRS-200N2-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UKCA, CB, cURus, EAC, CE, CQC |
| Current - Output 1 | 4.4 A |
| Efficiency | 90 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 211 W |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 8.46 in |
| Size / Dimension Width | 4.53 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V, 132 V |
| Voltage - Input (AC) Minimum | 180 VAC, 90 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 240 V |
| Voltage - Isolation | 3750 VDC |
| Voltage - Output 1 | 48 V |
