Description

General part information

RL78/G1x Series

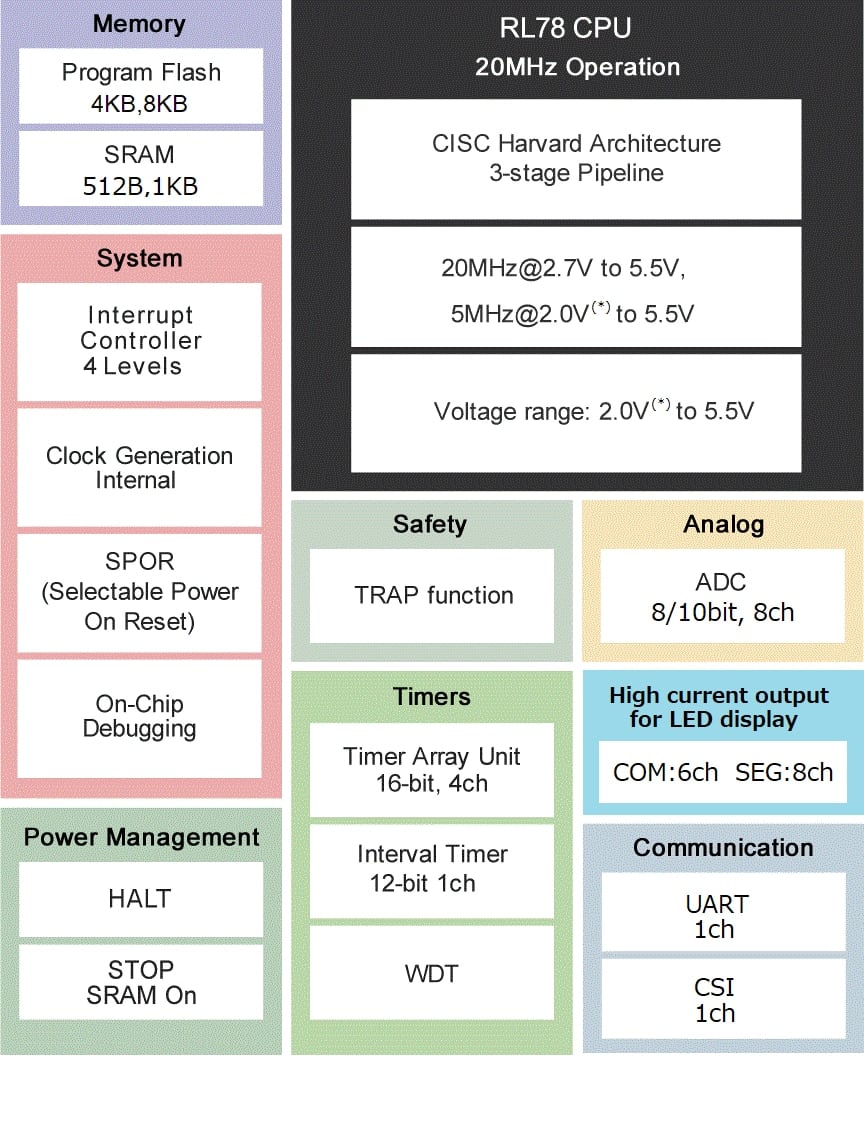

Even though the RL78/G1N microcontroller has a small pin-count 20-pin package, it is an 8-bit general-purpose microcontroller equipped with large current output terminals for driving LEDs. It allows direct drive of 8-segment 6-digit high brightness LEDs. It is suitable for small appliances, simple lighting fixtures and LED displays for portable batteries, etc.

Technical Specifications

Parameters and characteristics for this part

Specification	R5F11Y67DSM#70

A/D Channels	8 count
A/D Resolution (bits)	8 bit, 10 bit
Connectivity	UART, USART, CSI
Core Processor	RL78
Core Size (Bit Width)	8 Bit
Mounting Type	Surface Mount
Number of I/O	16
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package Length	0.173 in
Package Name	20-TSSOP
Package Width	4.4 mm
Peripherals	POR, WDT
Program Memory Depth	4 K
Program Memory Size	4 KB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	512
RAM Size Width	8 bit
Speed	20 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	2 V

RL78/G1x Series

...

Part	Package Name	Oscillator Type	Program Memory Type	A/D Resolution (bits)	A/D Channels	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	Core Size (Bit Width)	RAM Size Depth	RAM Size Width	Program Memory Depth	Program Memory Width	Program Memory Size	Package Length	Package Width	Peripherals	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Number of I/O	Speed	Core Processor	Mounting Type
Renesas Electronics Corporation R5F11W67ASM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68ASM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68ASM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#30	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W67DSM#30	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W67DSM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RL78/G1M, G1N Data Sheet Rev.1.00

R5F11Y67DSM#70 | Datasheet
