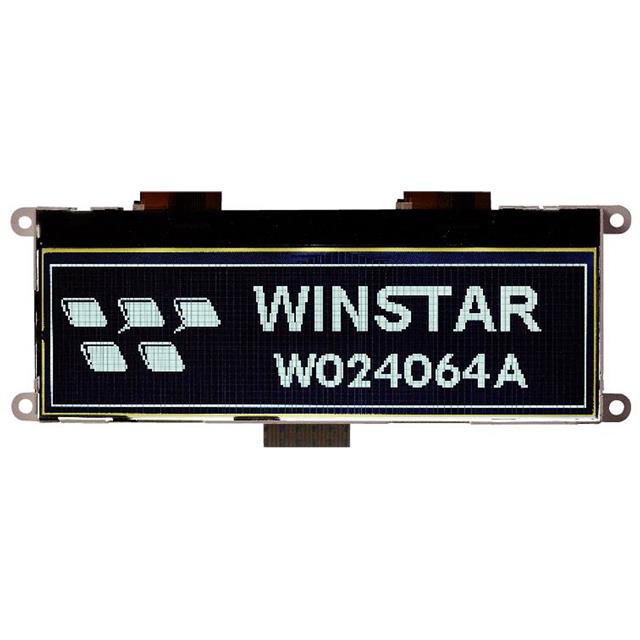

WO24064A1-TMI
ActiveWinstar Display
COG 256X128, ST75253
WO24064A1-TMI
ActiveWinstar Display
COG 256X128, ST75253
Description
General part information
WO24064A1-TMI
Graphic LCD Display Module 240 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | WO24064A1-TMI |
|---|---|
| Backlight | Without Backlight |
| Controller Type | ST7565P |
| Dot Pitch Height | 0.53 mm |
| Dot Pitch Width | 0.53 mm |
| Dot Pixels (Horizontal) | 240 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Dot Size Height | 0.53 mm |
| Dot Size Width | 0.53 mm |
| Viewing Area Height | 37.6 mm |
| Viewing Area Width | 130.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
