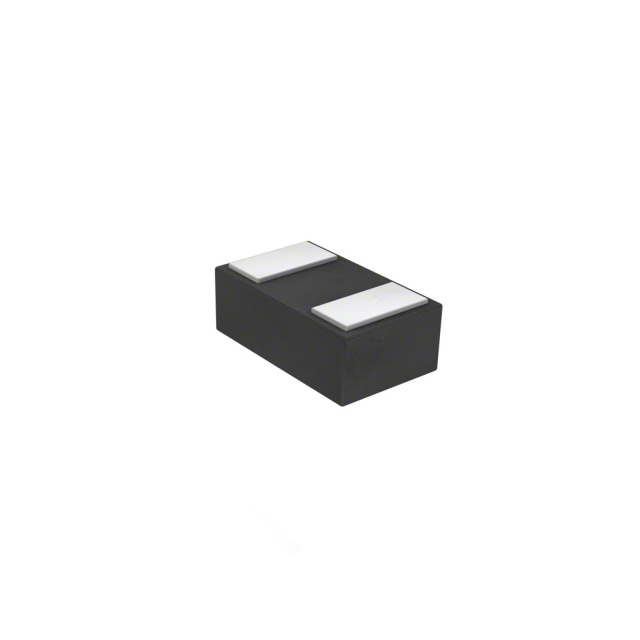

CPDQC5V0USC-HF
ActiveComchip Technology
TVS DIODE 5VWM 15V 0402C/SOD923F
CPDQC5V0USC-HF
ActiveComchip Technology
TVS DIODE 5VWM 15V 0402C/SOD923F
Description
General part information
CPDQC5V0USC-HF
15V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 0402C/SOD-923F
Technical Specifications
Parameters and characteristics for this part
| Specification | CPDQC5V0USC-HF |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels | 1 |
| Capacitance | 0.4 pF |
| Current - Peak Pulse | 3 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1006 Metric) |
| Package Name | 0402C/SOD-923F |
| Power - Peak Pulse | 45 W |
| Power Line Protection | No |
| Type | Zener |
| Voltage - Breakdown (Min) | 5.6 V |
| Voltage - Clamping (Max) | 15 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
