10168-8100EE

Active

CONNECTOR,D-SHELL,CABLE MOUNT,RECEPT,68 CONTACTS,PIN,0.05 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

CONNECTOR,D-SHELL,CABLE MOUNT,RECEPT,68 CONTACTS,PIN,0.05 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10168-8100EE	10168 Series

	-	-
Connector Style	Center Strip Contacts	Center Strip Contacts
Connector Type	Plug	Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.203 - 0.76 Ám
Contact Finish Thickness	30 Áin	8 - 30 Áin
Features	-	Shielded
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Board Edge, Straddle Mount
Number of Positions	68	68
Number of Rows	2	2
Termination	IDC	IDC, Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

D SUB CONNECTOR, 68 CONTACTS, PLUG, IDC / IDT, MDR 101 SERIES, STEEL BODY

Part	Connector Style	Number of Rows	Contact Finish	Features	Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Mounting Type
3M 10168-6010EC	Center Strip Contacts	2	Gold	Shielded	IDC	0.76 Ám	30 Áin	Plug	68	Free Hanging (In-Line)
3M 10168-6010EC
3M 10168-900AJL	Center Strip Contacts	2	Gold	Shielded	Solder	0.203 çm	8 çin	Plug	68	Board Edge, Straddle Mount
3M 10168-8100EE
3M 10168-900APL	Center Strip Contacts	2	Gold	Shielded	Solder	0.203 çm	8 çin	Plug	68	Board Edge, Straddle Mount
3M 10168-8100EE	Center Strip Contacts	2	Gold		IDC	0.76 Ám	30 Áin	Plug	68	Free Hanging (In-Line)

General part information

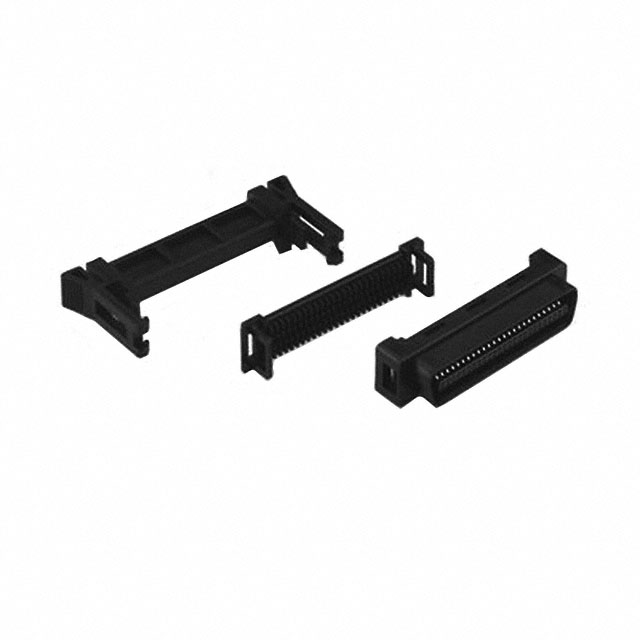

68 Position Plug Connector Free Hanging (In-Line) IDC
