IM02EB1R8K
ObsoleteVishay Dale
FIXED IND 1.8UH 455MA 300MOHM TH
IM02EB1R8K
ObsoleteVishay Dale
FIXED IND 1.8UH 455MA 300MOHM TH
Description
General part information
IM02EB1R8K

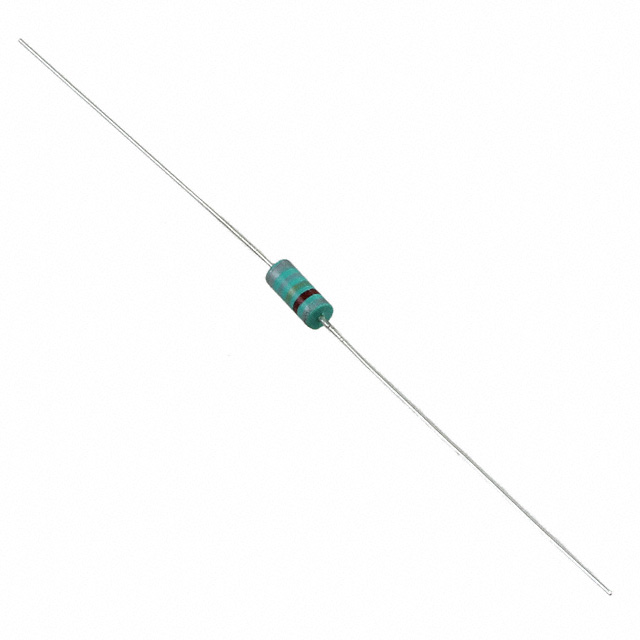

1.8 µH Unshielded Molded Inductor 455 mA 300mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | IM02EB1R8K |
|---|---|
| Current Rating | 455 mA |
| DC Resistance (DCR) (Max) | 300 mOhm |
| Frequency - Self Resonant | 125 MHz |
| Inductance | 1.8 µH |
| Inductance Frequency - Test | 7.9 MHz |
| Material - Core | Iron |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 30 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.095 in |
| Size / Dimension Length | 0.25 in |
| Tolerance | 10 % |
| Type | Molded |
