FMCA2389-12
ActiveFairview Microwave
CBL ASSY SMAJACK-STRAIGHT CUT LE
FMCA2389-12
ActiveFairview Microwave
CBL ASSY SMAJACK-STRAIGHT CUT LE
Description
General part information
FMCA2389-12

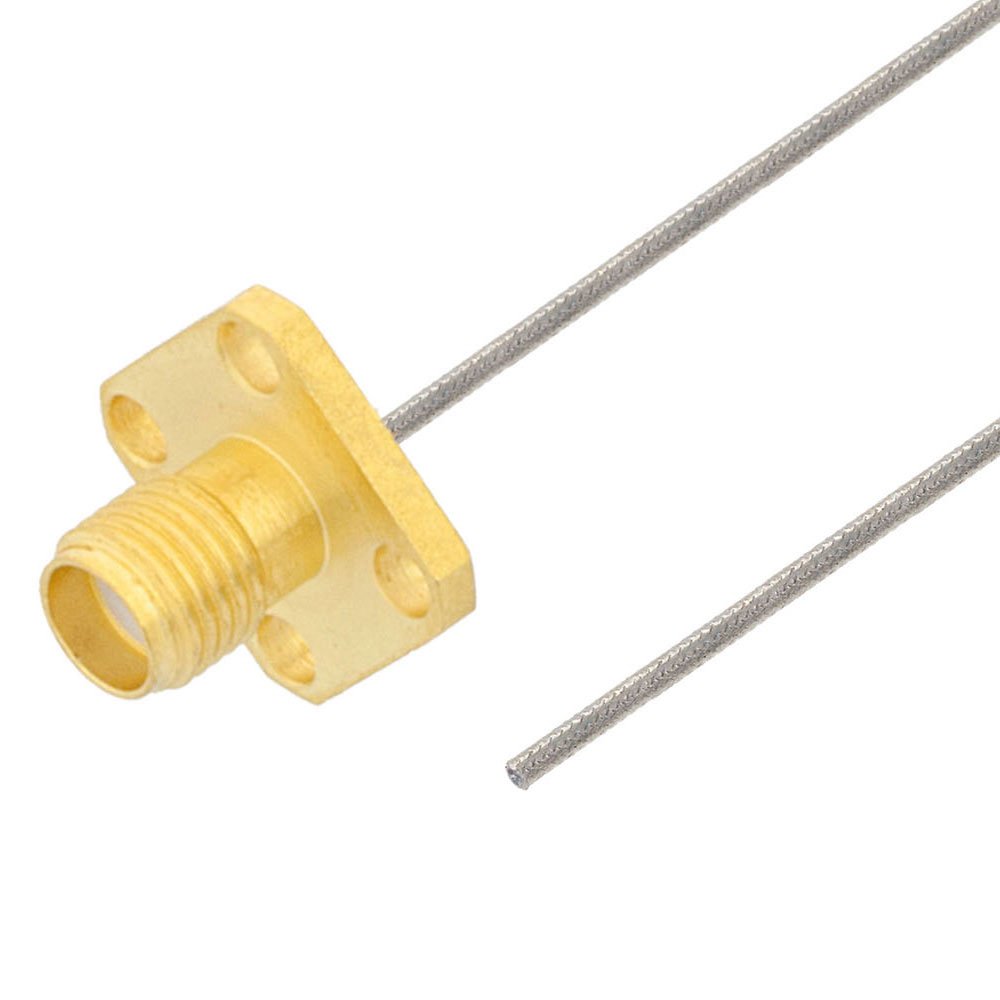

Cable Assembly Coaxial SMA to Cable Hand Formable .047 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2389-12 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Flange |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Cable (Round) |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | Cable, SMA |
