1376020-1

Active

TE Connectivity AMP Connectors

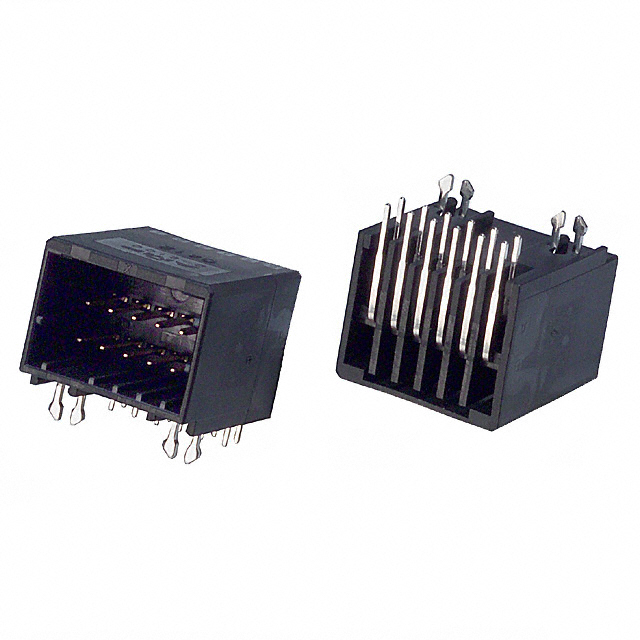

CONN HEADER R/A 12POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 12POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	1376020-1

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating (Amps)	5 A
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	14.7 mm
Insulation Height	0.579 in
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

CONN HEADER R/A 12POS 2.5MM

Part	Contact Finish - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Rows	Applications	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions	Contact Finish - Post	Contact Shape	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Insulation Material	Voltage Rating	Insulation Color	Current Rating (Amps)	Fastening Type	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Shrouding	Contact Material	Connector Type
TE Connectivity AMP Connectors 1376020-1	Gold	UL94 V-0	2.5 mm	0.098 in	2	General Purpose, Industrial	Board to Board, Cable	15 µin	0.38 µm	Solder	12	Tin	Rectangular	All	105 ░C	-55 °C	14.7 mm	0.579 in	Glass Filled, Polyester, Thermoplastic	250 VAC	Black	5 A	Detent Lock	Tab	0.134 in	3.4 mm	Through Hole, Right Angle	Shrouded - 4 Wall	Copper Alloy	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)
