A106S1RNMCB

Active

LITTELFUSE

SWITCH ROTARY 6POS 0.4VA 20V

Find alt

Alpha

A106S1RNMCB

Active

LITTELFUSE

SWITCH ROTARY 6POS 0.4VA 20V

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

A Series Series

Designers of applications for the automotive, major/small appliance and industrial equipment industries turn to C&K’s A series 1-4 pole rotary switches because of their reputation for being long-lasting and high quality. The A series features positive detent, shorting and non-shorting contacts and multi-pole and multi-position options.

Technical Specifications

Parameters and characteristics for this part

Specification	A106S1RNMCB

Actuator Length	Flush
Actuator Type	Screwdriver Slot
Angle of Throw	30 °
Circuit per Deck	SP6T
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Non-Shorting (BBM)
Current Rating	0.4 VA
Depth Behind Panel	14.48 mm
Features	Modular Base
Index Stops	Fixed
Mounting Type	Panel Mount, Through Hole
Number of Decks	1
Number of Poles per Deck	1
Number of Positions	6
Panel Cutout Diameter	9.8 mm
Panel Cutout Shape	Circular
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

A Series Series

...

Part	Circuit per Deck	Number of Decks	Voltage Rating - AC	Mounting Type	Contact Timing	Angle of Throw	Termination Style	Number of Positions	Actuator Diameter	Actuator Type	Index Stops	Contact Finish	Number of Poles per Deck	Voltage Rating - DC	Depth Behind Panel	Features	Contact Material	Current Rating	Actuator Length	Panel Cutout Diameter	Panel Cutout Shape	Electrical Life (Cycles)	Operating Temperature (Min)	Operating Temperature (Max)	Operating Force	Release Force	Overtravel (Linear)	Switch Function	Circuit	Quick Connect Size (0.250")	Pretravel (Length)	Actuator Length
LITTELFUSE A21403MNMCGF	DPDT	1	125 V	Panel Mount Through Hole	Non-Shorting (BBM)	90 °	PC Pin	2	6.35 mm	Flatted Flatted (6.35mm Dia)	Fixed	Gold	2	125 V	14.48 mm	Modular Base	Silver (Ag)	2.5 A 350 mA	9.53 mm	10.21 mm	Circular
LITTELFUSE A10003RNCQK	SP12T	1	125 V	Panel Mount Through Hole	Non-Shorting (BBM)	30 °	PC Pin	12	6.35 mm	Flatted Flatted (6.35mm Dia)	Continuous	Silver	1	125 V	14.48 mm	Epoxy Sealed Terminals Splashproof Bushing Seal	Silver (Ag)	2.5 A 350 mA	9.53 mm	9.8 mm	Circular
LITTELFUSE ASKHC2J04AW			125 V	Chassis Mount			Quick Connect			Overtravel Plunger								15 A				200000	-55 °C	85 °C	567 gf	85 gf	0.187 in	On-Mom	SPST-NC	0.25 in	0.05 in

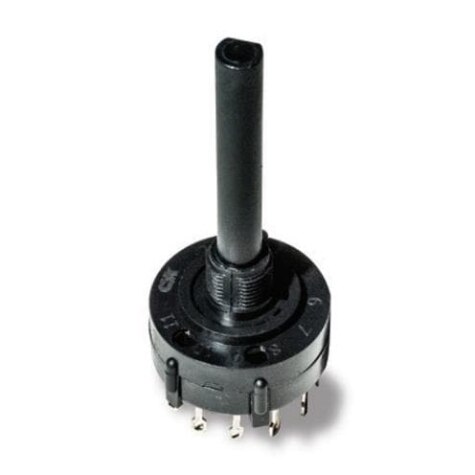

LITTELFUSE A11442MNZB	SPDT	1	20 V	Panel Mount	Non-Shorting (BBM)	90 °	Solder Lug	2		Round (6mm Dia)	Fixed	Gold	1	20 V	20.83 mm		Copper Alloy	0.4 VA	42 mm
LITTELFUSE A21405RNZQ	DPDT	1	125 V	Panel Mount	Non-Shorting (BBM)	90 °	Solder Lug	2	6.35 mm	Flatted Flatted (6.35mm Dia)	Fixed	Silver	2	125 V	20.83 mm		Silver (Ag)	2.5 A 350 mA	0.5 in	9.8 mm	Circular
LITTELFUSE A20603MSZQ
LITTELFUSE A10503RNCQK	SP5T	1	125 V	Panel Mount Through Hole	Non-Shorting (BBM)	30 °	PC Pin	5	6.35 mm	Flatted Flatted (6.35mm Dia)	Fixed	Silver	1	125 V	14.48 mm	Epoxy Sealed Terminals Splashproof Bushing Seal	Silver (Ag)	2.5 A 350 mA	9.53 mm	9.8 mm	Circular
LITTELFUSE A110S1RNCB	SP10T	1	20 V	Panel Mount Through Hole	Non-Shorting (BBM)	30 °	PC Pin	10		Screwdriver Slot	Fixed	Gold	1	20 V	14.48 mm		Copper Alloy	0.4 VA		9.8 mm	Circular											Flush
