GM400-1-72
Active3M

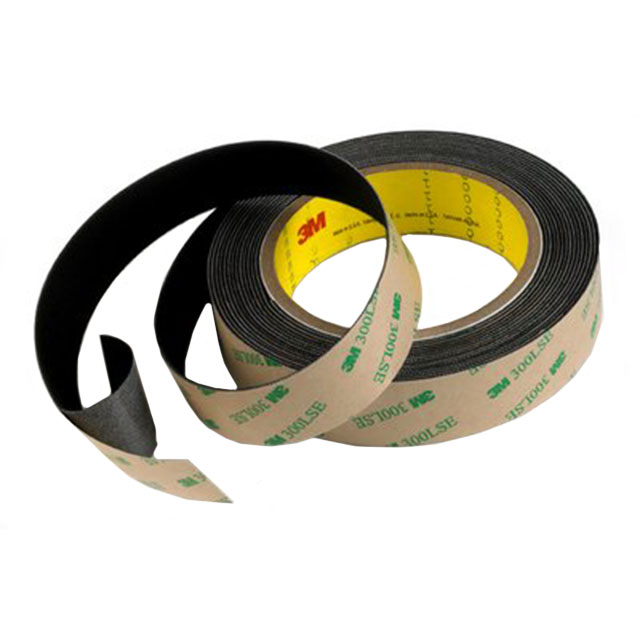

TAPE GRIP MATERIAL BLK 1"X24YDS
Deep-Dive with AI
Search across all available documentation for this part.
GM400-1-72
Active3M
TAPE GRIP MATERIAL BLK 1"X24YDS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GM400-1-72 | GM400 Series |
|---|---|---|
| Backing, Carrier | Polyester Mesh | Polyester Mesh |
| Color | Black | Black |
| Length | 24 yds | 24 yds |
| Length | 72 ft | 72 ft |
| Length | 21.9 m | 21.9 m |
| Tape Type | Gripping Material | Gripping Material |
| Temperature Range [Max] | 160 °F | 160 °F |
| Temperature Range [Max] | 71 °C | 71 °C |
| Temperature Range [Min] | -40 °C | -40 °C |
| Temperature Range [Min] | -40 °F | -40 °F |
| Thickness | 0.033 in | 0.033 in |
| Thickness | 0.84 mm | 0.84 mm |
| Thickness | 33 mil | 33 mil |
| Thickness - Adhesive | 5 mils | 5 mils |
| Thickness - Adhesive | 0.005 " | 0.005 " |
| Thickness - Adhesive | 0.127 mm | 0.127 mm |
| Thickness - Backing, Carrier [custom] | 28 mils | 28 mils |
| Thickness - Backing, Carrier [custom] | 0.711 mm | 0.711 mm |
| Thickness - Backing, Carrier [custom] | 0.028 " | 0.028 " |
| Usage | Gripping | Gripping |
| Width | - | - |
| Width | - | 260.35 mm |
| Width | - | 10.25 in |
| Width [x] | 25.4 mm | 25.4 mm |
| Width [x] | 1 in | 1 in |
GM400 Series
TAPE GRIP MAT BLK 10 1/4"X24YD
| Part | Usage | Length | Length | Length | Tape Type | Width | Width | Width | Color | Thickness - Adhesive | Thickness - Adhesive | Thickness - Adhesive | Thickness - Backing, Carrier [custom] | Thickness - Backing, Carrier [custom] | Thickness - Backing, Carrier [custom] | Thickness | Thickness | Thickness | Temperature Range [Min] | Temperature Range [Max] | Temperature Range [Min] | Temperature Range [Max] | Backing, Carrier | Width [x] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gripping | 24 yds | 72 ft | 21.9 m | Gripping Material | 260.35 mm | 10.25 in | Black | 5 mils | 0.005 " | 0.127 mm | 28 mils | 0.711 mm | 0.028 " | 0.033 in | 0.84 mm | 33 mil | -40 °C | 160 °F | -40 °F | 71 °C | Polyester Mesh | ||||
Gripping | 24 yds | 72 ft | 21.9 m | Gripping Material | Black | 5 mils | 0.005 " | 0.127 mm | 28 mils | 0.711 mm | 0.028 " | 0.033 in | 0.84 mm | 33 mil | -40 °C | 160 °F | -40 °F | 71 °C | Polyester Mesh | 25.4 mm | 1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GM400 Series
Gripping Material Tape Pressure Sensitive Adhesive (PSA) Adhesive Black 1.00" (25.40mm) X 72' (21.9m) 24 yds
