PA4301.333NLT
ActivePulse Electronics
FIXED IND 33UH 918MA 159.9 MOHM
PA4301.333NLT
ActivePulse Electronics
FIXED IND 33UH 918MA 159.9 MOHM
Description
General part information
PA4301.333NLT

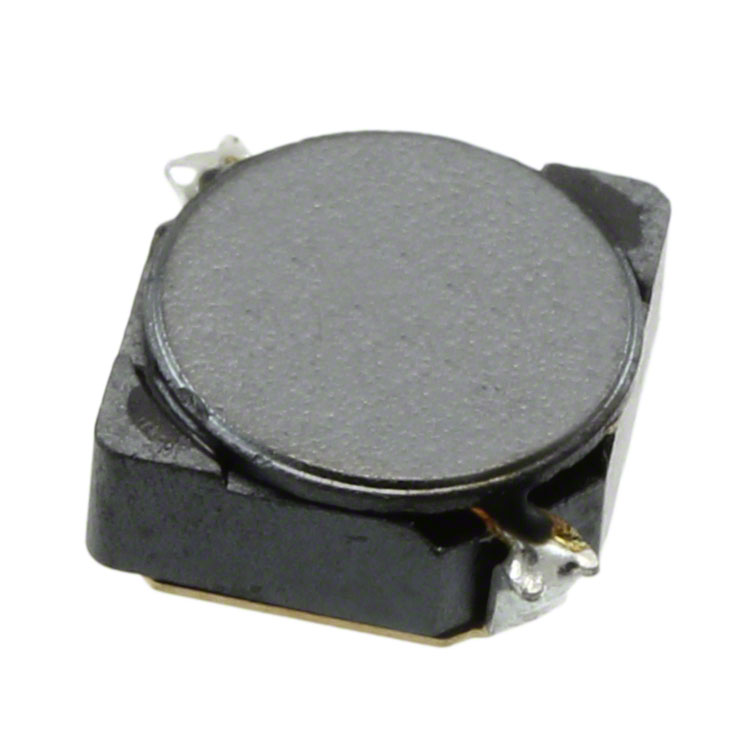

33 µH Shielded Drum Core, Wirewound Inductor 918 mA 159.9mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4301.333NLT |
|---|---|
| Current Rating | 918 mA |
| DC Resistance (DCR) (Max) | 159.9 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.283 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
