1-794609-2
ActiveTE Connectivity AMP Connectors

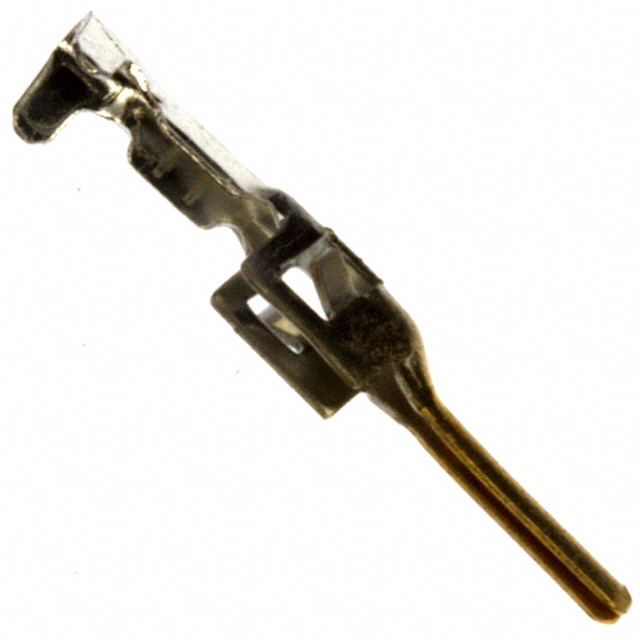

CONN PIN 26-30AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-794609-2
ActiveTE Connectivity AMP Connectors
CONN PIN 26-30AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-794609-2 | 794609 Series |
|---|---|---|
| Contact Finish | Gold | Tin-Lead, Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 - 2.54 µm |
| Contact Finish Thickness | 30 Áin | 30 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 26 AWG | 26 AWG |
794609 Series
CONN PIN 26-30AWG CRIMP TIN-LEAD
| Part | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Type |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794609-1 | Pin | 2.54 µm | 100 µin | Tin-Lead | 26 AWG | 30 AWG | Crimp | Stamped |
TE Connectivity AMP Connectors 1-794609-2 | Pin | 0.76 Ám | 30 Áin | Gold | 26 AWG | 30 AWG | Crimp | Stamped |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.22 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.17 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| 2500 | $ 0.12 | |||
| Tape & Reel (TR) | 10000 | $ 0.06 | ||
Description
General part information
794609 Series
Pin Contact Gold 26-30 AWG Crimp Stamped
